4track

4track

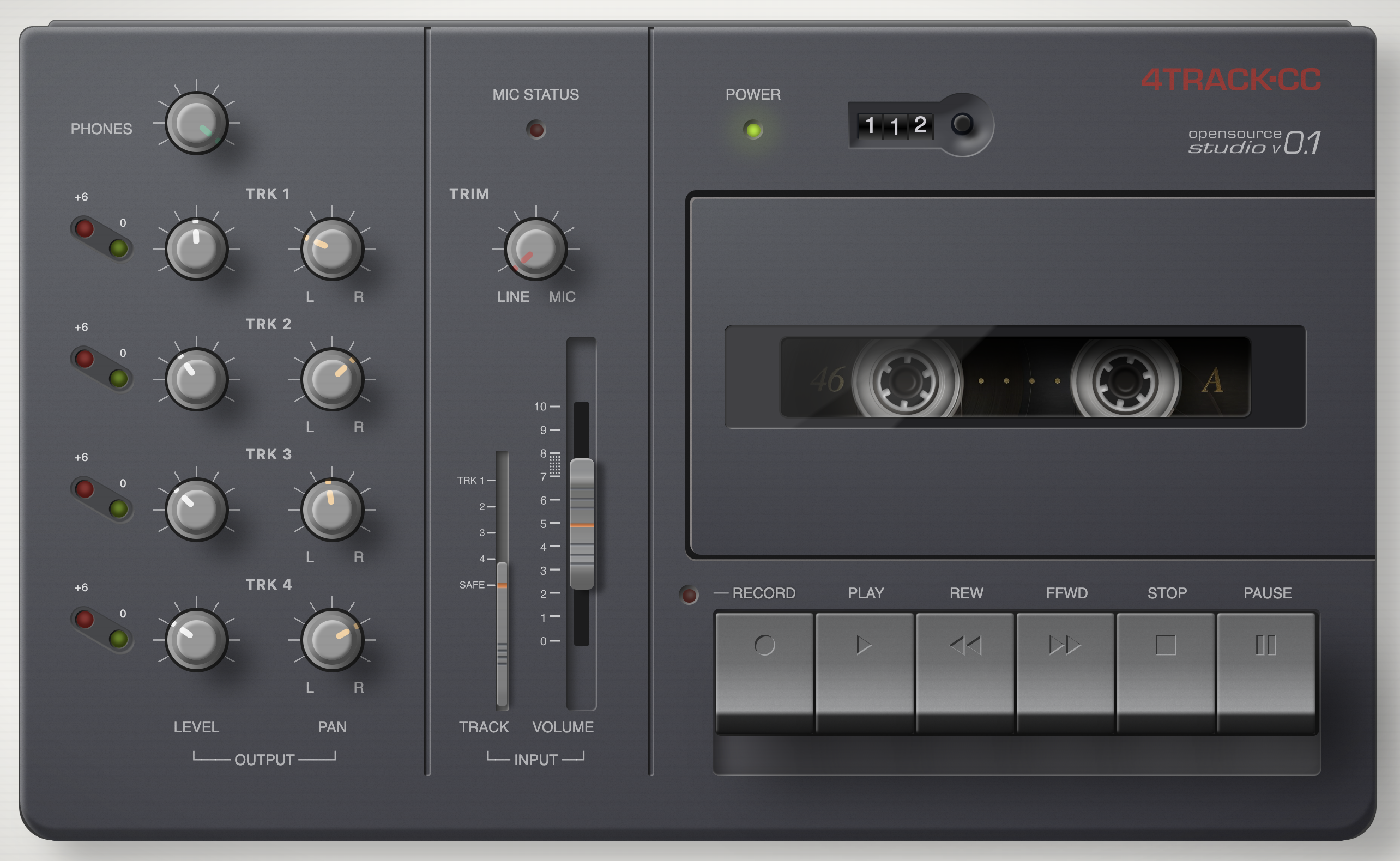

A browser-based 4-track audio recorder built with the Web Audio API and SvelteKit. Designed for low-latency recording with overdub support, latency compensation, and sample-accurate multi-track playback — all running entirely client-side with no server required.

Give it a try

You can try out the 4 track recorder on 4track.cc

Installation

npm install 4-track-recorder

Basic Usage

<script>
  import { FourTrack } from "4-track-recorder"
</script>

<FourTrack />

Saving and Loading Projects

The component uses a custom .4trk binary format that stores all track audio data and mixer settings (volume, pan, master volume).

Bind save and load functions

Use bind:save and bind:load to get functions you can call from your own UI:

<script>
  import { FourTrack } from "4-track-recorder"

  let save
  let load

  function handleSave() {
    const blob = save()
    // Download as file
    const url = URL.createObjectURL(blob)
    const a = document.createElement("a")
    a.href = url
    a.download = "my-song.4trk"
    a.click()
    URL.revokeObjectURL(url)
  }

  function handleLoad(event) {
    const file = event.target.files?.[0]
    if (file) load(file)
  }

  // Or load directly from a URL
  function loadFromUrl() {
    load("https://example.com/songs/demo.4trk")
  }
</script>

<FourTrack bind:save bind:load />

<button onclick={handleSave}>Save Project</button>
<input type="file" accept=".4trk" onchange={handleLoad} />

Load a project on mount

Pass a URL or File to initialProject to auto-load a project when the component mounts:

<FourTrack initialProject="/songs/demo.4trk" />

Props

Engine configuration

FourTrack creates an AudioEngine internally; pass extra options via the config prop, or construct new AudioEngine(config) yourself.

Recording latency compensation

When you overdub, the backing track reaches your ears after the output latency and your playing reaches the recorder after the input latency, so every recorded sample lands late by roughly the sum. The engine shifts each take earlier by outputLatency + baseLatency + mic latency as advertised by the browser. Browsers (WebKit especially) understate these values, so if takes still land late, measure the real round trip (a loopback click test works) and set recordingLatencyOffset:

<FourTrack config={{ recordingLatencyOffset: 0.045 }} />

External monitoring

If your host can monitor the mic with lower latency than Web Audio (for example a native audio path in a desktop wrapper), hand it the pass-through:

const config = {
  monitoringAdapter: {
    start: ({ stream, trackIndex, context }) => native.startMonitoring(),
    stop: () => native.stopMonitoring(),
  },
  captureStream: (constraints) => navigator.mediaDevices.getUserMedia({ audio: constraints }),
  recordingLatencyOffset: 0.012,
}

License

4track is dual-licensed under GPL-3.0-only or a commercial license. Use it under the GPL for free, or reach out for a commercial license if you need to embed it in a closed-source product (e.g. an App Store app).
