Agent PBX

A runtime-grounded Agentic Engineering Control Plane.

Agent PBX gives engineering operators one durable control surface for Agents, Operators, Codex runtimes, projects, campaigns, handoffs, approvals, knowledge, and lifecycle. It preserves native Codex interaction through PBX-managed tmux sessions while keeping identity, workspace ownership, routing, policy, model profiles, and audit under Agent PBX control.

Codex owns the reasoning and execution loop inside each attached session. Tmux owns terminal persistence and scrollback. Agent PBX owns the durable system around them. When WorkerBee is configured, runtime and infrastructure evidence can close the loop from implementation through deployment and validation.

We call the resulting engineering practice Agentic Application Stack Operations, or Agentic StackOps.

What Agent PBX Operates

• Durable runtimes: preserve Agents, Operators, sessions, models, panes, workspaces, and execution evidence across TUI and CLI restarts.
• Native terminals: interact with a normal tmux client and Codex renderer inside the retained Latest tab.
• Engineering coordination: manage Operators, forks, campaigns, handoffs, reviews, alerts, approvals, and lifecycle operations.
• Project systems: connect GitHub, Joplin, the project editor, managed skill packs, and optional WorkerBee runtime truth.
• Multiple control surfaces: use the local TUI, SSH-native attachment, scoped remote clients, HTTP/WSS, and MCP against the same durable state.

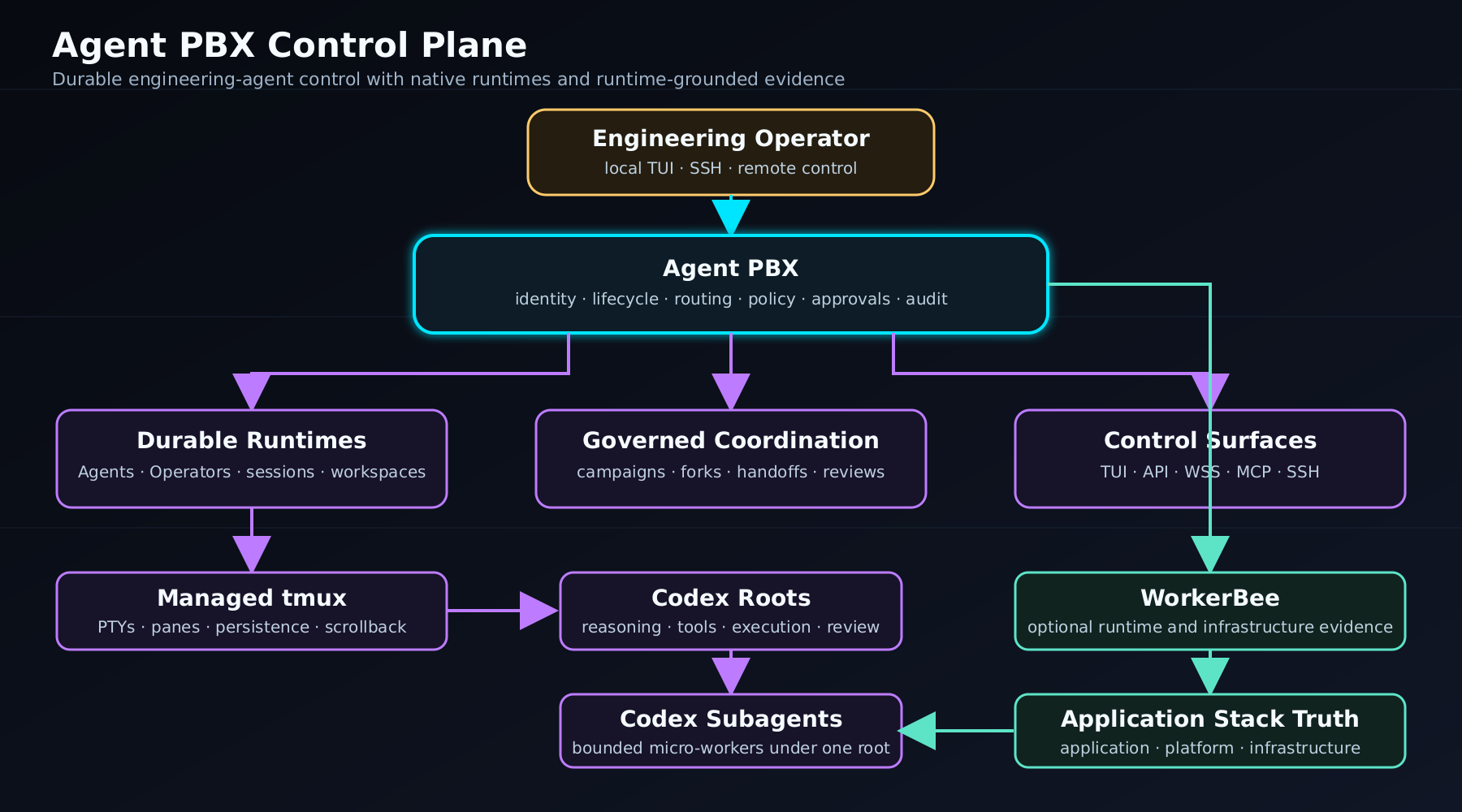

The diagram's maintained Mermaid source is tracked with the repository.

Interactive browser demo

The optional browser demo runs the real Agent PBX TUI against a fresh, deterministic daemon, database, Git projects, integrations, and tmux server for each visitor. It does not connect to workstation Agents, credentials, projects, or runtime state.

python -m pip install "agent-pbx[web-demo]"
agent-pbx demo doctor
agent-pbx demo web --host 127.0.0.1 --port 8000

Source contributors can use python -m pip install -e ".[web-demo]" from a checkout. See the interactive browser demo guide for the rootless container, HTTPS reverse-proxy boundary, resource controls, public origin policy, and versioned product-site contract.

See the architecture overview, the project wiki, the v2.2 release notes, and the accepted architecture decisions for the complete control-plane and compatibility boundaries.

Why PBX?

The name borrows from telephony. A PBX, traditionally a private branch exchange, is a switchboard that routes calls between extensions and outside lines. Agent PBX applies that pattern to engineering-agent runtimes: durable identities stay addressable while sessions, Operators, forks, tools, and human control surfaces connect through one governed exchange.

Install

Install from PyPI

Install the current Python package in a virtual environment with:

python -m pip install agent-pbx
agent-pbx --version

PyPI contains the Agent PBX wheel and source distribution. Use the GitHub Release wheelhouse below when a checksummed offline dependency bundle is required.

One-line release install

When release artifacts are published, install the latest wheelhouse with:

curl -fsSL https://github.com/m4xx3d0ut/agent-pbx/releases/latest/download/install-agent-pbx.sh | sh
agent-pbx --version

Set AGENT_PBX_INSTALL_BASE_URL when hosting the same artifacts somewhere else.

Install from downloaded artifacts

Download both release assets into the same directory:

install-agent-pbx.sh
agent-pbx-wheelhouse.tar.gz
agent-pbx-wheelhouse.tar.gz.sha256

Then install from that local artifact directory:

chmod +x install-agent-pbx.sh
AGENT_PBX_INSTALL_BASE_URL="file://$(pwd)" ./install-agent-pbx.sh
agent-pbx --version

The installer uses the active virtual environment when VIRTUAL_ENV is set. Otherwise it creates a standalone venv under ${XDG_DATA_HOME:-~/.local/share}/agent-pbx and writes an agent-pbx wrapper and an agent-pbx-tui wrapper to ~/.local/bin.

Build and install from a local wheelhouse

scripts/build_wheelhouse.sh --out dist/agent-pbx-wheelhouse
python -m venv .venv
source .venv/bin/activate
python -m pip install --no-index --find-links dist/agent-pbx-wheelhouse agent-pbx
agent-pbx --version

The build script also writes dist/agent-pbx-wheelhouse.tar.gz and dist/agent-pbx-wheelhouse.tar.gz.sha256 plus dist/install-agent-pbx.sh for release upload. The wheelhouse includes SHA256SUMS, DEPENDENCIES.json, and an SPDX 2.3 SBOM. Set AGENT_PBX_OFFLINE=1 during installation to forbid package-index fallback.

Release bundles should include:

install-agent-pbx.sh
agent-pbx-wheelhouse.tar.gz
agent-pbx-wheelhouse.tar.gz.sha256

Development

python3 -m venv .venv
source .venv/bin/activate
python -m pip install -e ".[dev]"
python -m pytest
agent-pbx mcp serve --host 127.0.0.1 --port 8765

Bare python -m pytest remains the sequential diagnostic path. For the full bounded parallel suite followed by the host-resource serial tail, run:

scripts/test_full.sh
AGENT_PBX_TEST_WORKERS=4 scripts/test_full.sh

The default local worker count is four and uses pytest-xdist work stealing so the large Textual test module can be distributed by test instead of being pinned to one worker. Run scripts/test_full.sh --serial for a complete single-process parity check. Tests marked serial are excluded from all xdist workers and run afterward in the controller process. See test execution and qualification for worker-count evidence, resource-isolation rules, and failure reproduction.

The server defaults to localhost. LAN binding requires bearer authentication, TLS, and explicit operator intent. V2 remote credentials support observer and controller roles, audience and expiry, optional client/Agent binding, immediate revocation, and audit. Agent-scoped controllers cannot use global legacy API, credential-administration, audit, or MCP surfaces.

See v2 installation and upgrade for Linux/macOS host requirements, remote clients, verified/offline wheelhouses, migration, and rollback. Maintainers should follow the Trusted Publishing release procedure for TestPyPI and production PyPI releases. Repository documentation and wiki source can be checked without touching services by running python scripts/check_docs.py and agent-pbx wiki check --source docs/wiki.

Local Environment

Use local.env.example as the template for machine-specific MCP and client defaults. From a source checkout, keep a repo-local config in local.env:

cp local.env.example local.env
$EDITOR local.env
source ./local.env

For a user/global install, copy the same file to the XDG user config path:

mkdir -p ~/.config/agent-pbx
cp local.env.example ~/.config/agent-pbx/local.env
chmod 600 ~/.config/agent-pbx/local.env
$EDITOR ~/.config/agent-pbx/local.env

The installed agent-pbx command automatically reads ${XDG_CONFIG_HOME:-~/.config}/agent-pbx/local.env before parsing command defaults. Override the path with AGENT_PBX_CONFIG=/path/to/local.env or skip it with AGENT_PBX_NO_CONFIG=1. Shell environment variables and explicit CLI flags still take precedence over file values.

Both local.env paths are intentionally private because they may contain local tokens, Joplin credentials, and absolute executable paths. Common values include AGENT_PBX_HOST, AGENT_PBX_PORT, AGENT_PBX_TOKEN, AGENT_PBX_SERVER_URL, AGENT_PBX_DEBUG, AGENT_PBX_WORKERBEE_BIN, and the optional Pull Request, Issues, GitHub remote/SSH, and Joplin settings. TUI operator and tmux launch defaults are configured with AGENT_PBX_TUI_OPERATOR_CWD, AGENT_PBX_TUI_CODEX_BIN, AGENT_PBX_TUI_OPERATOR_TMUX_SESSION, AGENT_PBX_TUI_CALLER_TMUX_SESSION, AGENT_PBX_TUI_OPERATOR_REVIEW_ROOT, and AGENT_PBX_TUI_REVIEW_MCP_APPROVAL_SERVERS.

For remote observer/controller TUIs, enable the v2 event stream and use a short-lived, role-scoped credential issued through the authenticated /v2/remote/tokens API. Non-loopback daemon binds require a bearer token and TLS certificate/key pair unless the explicit insecure-LAN override is used. Each TUI keeps independent server-side navigation state; prompt and document drafts remain local. Full terminal fidelity uses SSH without exposing the tmux socket:

export AGENT_PBX_TUI_EVENT_STREAM_V2=1
agent-pbx remote ssh-attach --host user@pbx-host --entity agent-id --read-only

See Checkpoint 14 remote access for the credential, TLS, revocation, snapshot, and rollback model.

For the common local workflow:

source .venv/bin/activate
source ./local.env
agent-pbx mcp restart
agent-pbx mcp status
codex mcp add agent-pbx --url "$AGENT_PBX_MCP_URL" \
  --bearer-token-env-var AGENT_PBX_TOKEN
agent-pbx tui

agent-pbx mcp restart preserves the previous daemon host and port when --host, --port, AGENT_PBX_HOST, and AGENT_PBX_PORT are not provided. This avoids accidentally moving a LAN-bound daemon back to localhost during a restart. Explicit flags and sourced local.env values still take precedence.

Portable TUI Launcher

Use agent-pbx-tui for TUI-only clients on another local machine or small LAN terminal. It reads a local dotenv-style config before launching, so the server address and token do not need to be typed every time:

agent-pbx-tui --init-config
$EDITOR ~/.config/agent-pbx/tui.env
agent-pbx-tui

Set the MCP/API host by IP or DNS name and keep the token private:

AGENT_PBX_SERVER_URL=http://192.168.29.111:8767
AGENT_PBX_TOKEN=dev-token
AGENT_PBX_TUI_LAYOUT=tiny
AGENT_PBX_TUI_THEME=cyberpunk
AGENT_PBX_TUI_LOW_POWER=1
AGENT_PBX_TUI_TMUX=0

The default config path is ${XDG_CONFIG_HOME:-~/.config}/agent-pbx/tui.env; override it with AGENT_PBX_TUI_CONFIG=/path/to/tui.env or agent-pbx-tui --config /path/to/tui.env. Environment variables override config values, and agent-pbx-tui --server ... --token ... overrides both. The config parser supports KEY=value, export KEY=value, shell-style quotes, comments, and ${VAR} references without executing the file as a shell script.

Background MCP Daemon

Start the shared local MCP daemon in the background:

agent-pbx mcp start

The daemon stores its SQLite DB, metadata, and logs under ${AGENT_PBX_HOME:-${XDG_DATA_HOME:-~/.local/share}/agent-pbx} by default. Use agent-pbx mcp status, agent-pbx mcp restart, and agent-pbx mcp stop for lifecycle management. Use agent-pbx mcp serve or the compatibility command agent-pbx serve only when you want a foreground/debug process.

agent-pbx mcp status prints the MCP URL, health URL, DB path, log path, metadata path, and a Codex connection command. It also accepts --token as a no-op compatibility flag, which keeps copied lifecycle commands symmetrical with start, restart, tui, and UAT commands:

codex mcp add agent-pbx --url http://127.0.0.1:8765/mcp \
  --bearer-token-env-var AGENT_PBX_TOKEN

If the requested port is already in use, agent-pbx mcp start fails fast. Stop the owning process or choose another port with --port. After an editable reinstall, restart the daemon so it serves the new code:

agent-pbx mcp restart
agent-pbx mcp status

Agent Instructions

Agent PBX can print or install the AGENTS.md wording that tells Codex-style agents how to register, report, poll, and handle queued operator commands.

agent-pbx agent instructions
agent-pbx agent install --check --target AGENTS.md
agent-pbx agent install --append --target AGENTS.md
agent-pbx agent install --append --allow-create --target AGENTS.md

For deeper behavior guidance, print the runbook:

agent-pbx agent runbook

Connected agents can also call pbx_agent_runbook over MCP. The runbook is intended for project-specific agent docs and for agents that need a refresher on session-long PBX behavior.

Agent PBX has two operator-facing modes:

• use Agent PBX: report mode. Agents register with metadata.pbx_mode="report" and send meaningful pbx_report_turn updates. They must not call pbx_poll_commands or claim queued command pickup.
• use Agent PBX nohup: nohup mode. Agents register or update metadata with pbx_mode="nohup" and pbx_nohup_explicit=true, report status, poll queued commands, ack handled commands, honor pings, and open post-reply follow-up windows.

Registration still defaults pbx_active=true, which means Agent PBX visibility is on. pbx_active=false means PBX is off for either mode. The guidance requires status="done" reports for repository work to include whether changes are clean, committed, staged, or unstaged. It also requires normally progressing long-running work to check in with status="working" at least once every five minutes.

In nohup mode, after a terminal reply, agents should open one bounded post-reply follow-up window:

pbx_poll_commands(
    agent_id="codex-main",
    wait_seconds=25,
    max_wait_seconds=600,
    interval_seconds=5,
)

That repeats long-poll cycles for up to ten minutes after done, complete, completed, failed, canceled, or blocked reports, so follow-ups queued after the reply can still be picked up by a live nohup-mode agent. If the 600s window returns empty, the agent should stop polling until the next explicit PBX action or new work.

Agents should open that post-reply window only after the operator explicitly asked for use Agent PBX nohup. In report mode, including local tmux-direct workflows, agents should send the terminal report and stop without long polling.

Use Ping in the TUI to intentionally keep a live nohup-mode agent polling longer. Agents handle ping as a keepalive: reply with a status="working" pong report, ack with {"pong": true}, then start another 300s bounded poll window. Each ping extends polling in five-minute increments. In report mode, Ping, Request Detail, Send Input, and queued plan replies wait in the PBX queue until the agent polls; use tmux direct mode for no-poll local interaction.

When an operator asks an agent to stop using PBX, the agent should send a final report, call pbx_set_active(active=false), and stop PBX reporting and any polling until a new PBX session starts. The TUI PBX column shows report, nohup, or off.

The TUI Use column shows a rough PBX-visible usage gauge per agent for the last hour: estimated tokens plus poll, report, and ping counts. Estimates use payload text size and fixed weights for polling overhead; they are not exact Codex billing, but they identify noisy agents and verbose check-ins.

Operator Agents and Campaigns

Agent PBX supports two agent types. Existing sessions default to agent_type="caller". The TUI can also start an agent_type="operator" from a caller by forking that caller's current Codex session with codex fork. A logical operator can own a default/edit fork plus multiple read-only review forks for the same caller. Review forks use fork_track_id values such as review-1, fork_purpose="review", access_mode="review_readonly", and a scratch work_root outside the caller's source checkout.

Caller sessions must register metadata.cwd and metadata.codex_session_id before Agent PBX can create a fork. V1 fork creation is local-only: if a caller session is on another host, Agent PBX records a blocked fork state instead of guessing or using codex fork --last.

When a caller restarts its Codex session, Agent PBX can rebind one stale live fork to the new metadata.codex_session_id if the logical operator, caller, source cwd, host, and fork track match. If multiple candidates match, the fork is left blocked so the operator can resolve the association explicitly.

Campaign state is stored in dedicated SQLite tables for fast TUI/API queries: operator_campaigns, operator_campaign_assignments, and operator_campaign_events. Fork state and optional planning DAG links are stored in operator_forks and operator_fork_edges. Knowledge-link context is stored in operator_knowledge_links and operator_knowledge_turns; executable operator-to-operator handoffs are stored in operator_handoffs. Handoffs track approval, required target fork launch, delivery evidence, receiver acknowledgement, started/running state, TTL expiry, artifact summaries, and terminal status without creating fork edges or changing source-session ownership. Durable operator knowledge is stored in operator_kb_entries, operator_kb_sources, and operator_kb_events after root-operator review; manual seed-run provenance is stored in operator_kb_seed_runs. Full-text and semantic-lite search state is maintained through operator_kb_index_jobs, the SQLite FTS table, and hashed-signature chunk rows in operator_kb_chunks, so KB search remains portable with the PBX database and does not require a vector service. Reports and commands still provide the audit trail and link back to campaigns with report metadata and command payload fields such as campaign_id, assignment_id, operator_agent_id, and operator_fork_id.

The operator loop is:

1. Call pbx_operator_runbook.
2. Start a campaign with title, objective, criteria, and one assignment per caller.
3. On first interaction with each caller, create or reuse the caller's default forked operator session, or create a dedicated review fork for read-only review work.
4. Dispatch and follow up through the fork session. delivery="auto" queues nohup forks and uses tmux for report-mode forks.
5. Review caller and fork threads, send follow-ups, and report each assignment as complete, blocked, or needing follow-up.
6. Finish the campaign when all assignments have explicit final states.

The TUI Campaigns tab shows operator-owned campaigns and generated report detail. Use View Report (R) or Shift+R to inspect the selected campaign report. Use Copy Note (C), Shift+C, or /campaign copy to write the selected campaign detail, including loaded generated reports, to a new Joplin note when Joplin is configured.

The Operators pane keeps root operators and their fork sessions together. Use Review W, press W, or run /operator fork review with a root operator or its caller-scoped fork selected to create a read-only review fork in the configured scratch work root. For a root operator, the review fork uses that operator's default source caller first, then its active default/edit fork source; stale Agents-pane cursor state is ignored. Use Prev F6 and Next F7 to cycle the visible fork pane for the selected logical operator.

Review fork launch normally uses Codex transcript continuation so the review operator inherits the source session context. If Codex rejects that continuation with invalid_encrypted_content, Agent PBX restarts the review fork as a fresh Codex session with the same PBX fork identity, source metadata, scratch work_root, and preapproved review MCP tools. Fresh-context forks still start at the ready prompt and receive no review task during creation, but operators should provide needed domain context through the first prompt, KB context, or a knowledge handoff. Set AGENT_PBX_TUI_REVIEW_FORK_LAUNCH_MODE=fresh_context to skip transcript continuation for new review forks.

Review forks should treat the source checkout as read-only and write only under their configured work_root. If a finding requires edits in the source repo, route it with pbx_operator_route_review_escalation so the root operator or an idle default/edit fork can handle it. If review work needs a new sibling project, call pbx_operator_request_project_spawn with the project name, instructions, and mode of empty or clone_source. The TUI/root operator approves the oldest pending request with Spawn P or /operator project spawn; Agent PBX then creates the sibling project at the same parent depth as the source repo, starts a normal tmux caller Codex session there, and attaches it to the Agents pane when it registers.

If review work needs to transfer domain context to another operator, the review fork can call pbx_operator_propose_knowledge_handoff with the source review fork agent, target operator agent, and handoff message. Metadata may include a target_caller_agent_id, allowed_mutation_scope, required_artifacts, redacted artifact_bundle, expires_at, needs_ack, and optional KB lookup fields such as kb_query, kb_project, kb_repo_root, kb_tags, and include_kb_context=true. When a KB query is present, Agent PBX attaches active KB matches to the handoff metadata and delivered prompt before the receiving operator starts. Review forks can list and inspect knowledge-link, handoff, and KB context, but they cannot approve delivery or send unmediated knowledge turns. The root operator/TUI uses /operator handoffs to inspect pending handoffs and /operator handoff preflight to dry-run pane readiness, queue/nohup routing, required target-fork state, and attached KB context without sending anything. Use /operator handoff approve to approve the oldest pending handoff. If the target operator needs a caller fork that has not been launched, the handoff moves to pending_launch; use /operator handoff launch to launch the required fork and retry delivery. Agent PBX then sends a normal send_input command or tmux direct message to the target operator without creating a fork edge, campaign assignment, or source-session association.

Receiving operators should acknowledge handoffs with pbx_operator_ack_handoff. Use status="acknowledged" after reading the linked context and status="running" only after the target workflow actually starts. Use pbx_operator_update_handoff for blocked, failed, complete, or other terminal states. Delivery evidence distinguishes tmux/queue delivery from receiver acknowledgement and start, so a pane paste is not treated as workflow success by itself. Tmux evidence records the resolved pane, target command, paste/send-key steps, and whether the target looked Codex-like; submitted is only true for a Codex-like target.

When a knowledge link or handoff produces reusable operating guidance, review forks and operators can propose KB entries with pbx_operator_kb_propose or pbx_operator_kb_propose_from_link. Proposed entries stay scoped to the creating logical operator until the root operator reviews and promotes them with pbx_operator_kb_promote, /operator kb promote, or the Promote button in the right-pane KB tab. Use /operator kb proposed or the Proposed filter to inspect pending entries and select a row to review its body. Root operators can edit entries with pbx_operator_kb_update, reject bad proposals with pbx_operator_kb_reject, /operator kb reject, or Reject, and retire active records with pbx_operator_kb_retire, /operator kb retire, or Retire. Active KB entries are readable by other operators through pbx_operator_kb_search, pbx_operator_kb_context, pbx_operator_kb_get, and /operator kb. Handoff flows can request the same lookup by passing kb_query or include_kb_context=true metadata. Context lookup defaults to project scope, only narrows by repo path when repo_root or kb_repo_root is supplied, and uses SQLite-local hybrid keyword/semantic retrieval unless semantic=false is passed. Raw KB search remains keyword-first by default; pass semantic=true to pbx_operator_kb_search or /v1/operator/kb when differently worded queries should be considered. Returned entries include non-persistent retrieval evidence under metadata.retrieval, including source type, score, and matched chunk metadata. KB lookups are also recorded as query history. Context responses and recorded search results include query_id and per-entry match_id values so operators can call pbx_operator_kb_feedback with accepted, rejected, stale, wrong_scope, unsafe, or miss. Use pbx_operator_kb_list_queries, pbx_operator_kb_get_query, /operator kb history, and /operator kb misses to review prior searches, top matched chunks, feedback counts, and miss reports. The TUI KB tab has a query box plus Search, History, Misses, Useful, Wrong, and Miss controls for visual review. Root operators can export portable JSON-compatible KB bundles with pbx_operator_kb_export and import them with pbx_operator_kb_import; active import and promotion require clean redaction state or an explicit manual override in metadata.

Operators can also compile proposed KB entries from normal working reports by including report metadata under operator_kb_candidates, kb_candidates, or kb_proposals. Each candidate is an object with title, summary, body, and optional scope, project, repo_root, git_remote, branch, tags, stale_after, expires_at, and metadata. The API and MCP report paths auto-compile those candidates as proposed KB entries, dedupe them with a content hash, attach the source report in operator_kb_sources, and keep promotion on the root review path. Use /operator kb compile to manually retry compilation for the selected operator's latest report, and /operator kb reindex to rebuild the SQLite FTS and semantic chunk indexes.

Use /operator kb seed to manually ask the selected root operator or fork to extract durable operating guidance from its current context. Agent PBX records a seed run, delivers a normal send_input prompt by queue or tmux, and includes a stable seed_run_id and seed_sync_key for future sync/dedupe. The receiving operator searches existing KB entries, proposes small atomic entries with pbx_operator_kb_propose, includes the supplied seed metadata, then marks the run finished with pbx_operator_kb_update_seed_run. Seed runs create proposed entries only; root promotion, rejection, retirement, import, and export stay on the existing review path.

KB bodies and export bundles may contain private, proprietary, or personally identifying context from operator handoffs. Keep exports under ignored local paths such as artifacts/, runs/, or state/; repo ignore rules also exclude root-level *operator-kb*.json, *operator_kb*.json, and agent-pbx-operator-kb*.json bundle files.

Current semantic KB support is intentionally local and deterministic. It chunks canonical KB text, stores hashed sparse term signatures, and combines those scores with the existing keyword/FTS path. Retrieval feedback and query observability are canonical SQLite records, while export/import continues to move only reviewed KB entries. The practical roadmap from here is to tune retrieval from accepted/rejected/miss history, then consider a true embedding provider or graph edges only after retrieval quality gaps are visible in normal operator work.

First use from a running tmux-mode TUI is: select the source caller, use Start O or press O to ensure the logical operator exists and is bound to that caller, select the logical operator in the Operators pane, use Review W or press W to create a read-only review fork, then prompt that review fork. The new review fork starts at a ready Codex prompt after registration and does not receive a review task during creation. When the review fork requests a sibling project, select the operator and use Spawn P or /operator project spawn; the spawned project should then appear as a normal caller in the Agents pane after its Codex session registers. When a review fork proposes a knowledge handoff, select the logical operator and run /operator handoffs to inspect workflow state, /operator handoff preflight to verify the target route, /operator handoff approve to approve delivery, and /operator handoff launch if the target operator needs a caller fork before the handoff can run. When that exchange produces durable guidance, run /operator kb seed against the operator or fork that holds the context, then run /operator kb proposed to open the KB tab on proposed entries, select proposals to review their bodies, and use Promote to publish clean proposals or Reject to reject them. If the operator already reported explicit KB candidates, use /operator kb compile first, then review the proposed entries in the same tab.

Planned Local Validation

WorkerBee is used to rebuild and run the containerized MCP/API service with simulated agents and clients. Repository-owned WorkerBee manifests live under ops/workerbee/.

docker build -t agent-pbx:workerbee .
docker run --rm -p 8765:8765 -e AGENT_PBX_TOKEN=dev-token agent-pbx:workerbee
agent-pbx sim-agent --token dev-token --once
agent-pbx sim-client --token dev-token --agent-id sim-agent-1 --message "Proceed"

For a bounded operator KB/handoff UAT run against a live daemon, use the reusable harness. Synthetic agents and reports include suppressed TUI alerts, and cleanup hides synthetic agents plus retires/rejects generated KB proposals. Every run writes a private manifest under the Agent PBX state root so cleanup can be retried if the process is interrupted:

agent-pbx uat operator-kb-flow --server http://127.0.0.1:8765 --token dev-token
agent-pbx uat operator-kb-flow --server http://127.0.0.1:8765 --token dev-token \
  --tmux-sink --tmux-session auto --output runs/operator-kb-flow.json
agent-pbx uat cleanup --run kb-sim-YYYYMMDDHHMMSS-xxxxxxxx --token dev-token
agent-pbx uat operator-kb-flow --ci --server http://127.0.0.1:8765 --token dev-token
agent-pbx uat operator-kb-flow --from-stage 6 --ci \
  --server http://127.0.0.1:8765 --token dev-token
agent-pbx uat compare --run kb-sim-old --run kb-sim-new
agent-pbx uat codex-operator-flow --codex-cli-version 0.158.0 --model gpt-5.6-sol

The tmux profile preflights server health, controlled cwd, tmux binary, and the target tmux session before creating synthetic operators. --tmux-session auto prefers AGENT_PBX_TUI_OPERATOR_TMUX_SESSION, then agent-pbx, then agent-pbx-operators, and reports a warning if it has to fall back. The --ci profile disables tmux delivery and forces cleanup, which keeps the harness suitable for automated test jobs that only need API-level validation. Use --output path.json to preserve the complete run evidence while keeping the terminal summary compact.

Use --stage N to run one logical UAT stage plus required setup, or --from-stage N to run the later-stage slice plus setup. --skip-tmux disables tmux delivery even when a copied command includes --tmux-sink. Stage 6 covers negative-path recovery checks: expired handoffs, missing target forks, preflight timestamp readiness, non-Codex tmux evidence, and idempotent cleanup expectations. Stage 7 covers a record-only multi-operator lifecycle where a third operator resolves KB context, acknowledges, runs, completes, and avoids unwanted fork/source-session associations. Stage 8 validates SQLite-native semantic KB retrieval: keyword-only search misses a differently worded query, hybrid search finds the promoted KB entry, and handoff metadata can attach that semantic context. Stage 9 records accepted retrieval feedback, records a miss, lists query history and miss reports, fetches match/chunk detail, and verifies portable KB export still omits query-history and feedback observability records.

Successful cleanup is followed by an audit that checks for visible synthetic agents, active UAT KB leaks, non-terminal UAT handoffs, and live UAT tmux panes. agent-pbx uat compare --run A --run B reads persisted manifests and reports check, failure, warning, duration, cleanup, and report-drift deltas.

The codex-operator-flow matrix is a live-operator checklist for Codex CLI and model compatibility. For the 0.158.0 update, run it with the selected GPT-5.6 slug and use the cases to exercise caller-to-root operator spawn, default/edit fork launch, review fork transcript continuation, review fork fresh-context fallback, resume/restart session rebinding, native plan selector choices, Escape/Ctrl+C hard-stop verification, and Joplin /copy -> transcript -> tmux capture behavior.

The TUI handoff list shows the latest recorded delivery preflight age/warnings and a lightweight ack monitor for sent handoffs. Approving a pending handoff runs preflight first and records that preflight in the handoff metadata before delivery.

WorkerBee TUI Status

Set AGENT_PBX_WORKERBEE_BIN before starting the Agent PBX daemon to enable the WorkerBee status tab in the TUI. The daemon runs WorkerBee status commands; the TUI only renders the API result. When a versioned backend status helper is configured, doctor and the tab also show backend provenance, endpoint alignment, server identity, and PBX-host versus WorkerBee-visible project paths.

export AGENT_PBX_WORKERBEE_BIN="$HOME/git/k1s-workerbee/.venv/bin/workerbee"
export AGENT_PBX_WORKERBEE_TIMEOUT_SECONDS=20
agent-pbx mcp restart --token dev-token
agent-pbx tui --token dev-token

Agents must register with metadata.cwd set to their project directory. When the selected agent is in a WorkerBee project, the tab shows the WorkerBee project name, mode, running state, dashboard URLs, app readiness, latest deployment metadata, ingress URLs, workloads, and validation findings. These project-status views do not start, stop, deploy, or mutate WorkerBee projects. AGENT_PBX_WORKERBEE_TIMEOUT_SECONDS defaults to 20 because workerbee projects can take more than ten seconds on hosts with many projects. Agent PBX also serializes same-agent WorkerBee checks and caches results briefly to avoid WorkerBee project-lock collisions from repeated refreshes.

A valid PBX project reported missing by WorkerBee is treated as a path- visibility diagnostic rather than evidence that the WorkerBee server needs a patch. Omitted launch tools, unavailable endpoints, older servers, and path mismatches produce distinct diagnostics. See the WorkerBee wiki guide.

When both versioned switch helpers are configured, the WorkerBee tab and palette can preview a change between OSS and platform-debug MCP backends:

export AGENT_PBX_WORKERBEE_SWITCHER_STATUS_BIN="$HOME/.local/bin/wb-mcp-status"
export AGENT_PBX_WORKERBEE_SWITCHER_BIN="$HOME/.local/bin/wb-mcp-switch"

/workerbee switch oss and /workerbee switch debug always begin with the switcher's real non-mutating --dry-run result. Apply requires an unexpired private transaction, unchanged backend evidence, exact typed confirmation, and an additional privileged confirmation for platform-debug. Agent PBX verifies both backend provenance and WorkerBee MCP capabilities after apply, attempts automatic restoration on failure, and provides /workerbee switch rollback for the last verified transaction. The change applies only to future sessions; running Codex sessions remain pinned to their existing MCP binding.

Pull Request Review

Set AGENT_PBX_PR_ENABLED=1 before starting the daemon to enable the PRs tab for selected agents whose metadata.cwd is inside a GitHub repository. Agent PBX uses the authenticated gh CLI on the MCP host; remote TUI clients only see Agent PBX API results.

export AGENT_PBX_PR_ENABLED=1
export AGENT_PBX_GH_BIN=gh
export AGENT_PBX_PR_ALLOWED_REPOS=m4xx3d0ut/agent-pbx,the-cm-collective/k1s-private,the-cm-collective/k1s-workerbee-private
# Optional, only when gh cannot infer the intended GitHub repository.
export AGENT_PBX_GITHUB_REMOTE=upstream
# Optional, only when GitHub access needs a specific SSH identity.
export AGENT_PBX_GITHUB_SSH_COMMAND="ssh -i $HOME/.ssh/github-key -o IdentitiesOnly=yes -o IdentityAgent=none"
agent-pbx mcp restart --token dev-token
agent-pbx tui --token dev-token

The PRs tab lists open pull requests, status checks, details, changed files, and URLs for the selected agent project. Review asks the selected agent to review the PR; Validate asks it to run appropriate WorkerBee checks and report results. In tmux direct mode these prompts are sent straight to the Codex pane. Otherwise they are queued as send_input commands, so the target agent must be polling in use Agent PBX nohup mode before the request can produce a new Latest/Thread report. Agents can call pbx_pr_context(agent_id, pr_number) for read-only PR context, but there is no agent-side merge tool.

Merging is operator-only and disabled by default. To expose the TUI/API merge button, set AGENT_PBX_PR_MERGE_ENABLED=1; the merge request still requires the server token and exact confirmation text such as merge PR #12. Use AGENT_PBX_PR_ALLOWED_REPOS as a comma-separated allowlist for LAN lab runs. If the PR tab reports that a repository is not allowed, add that owner/repo value to the list or leave the variable empty to allow any repo visible to gh on the MCP host.

By default, Agent PBX lets gh infer the GitHub repository from the selected agent's working directory. If a project has multiple remotes and gh would pick the wrong one, set AGENT_PBX_GITHUB_REMOTE to the remote name that points at GitHub. Agent PBX then resolves owner/repo from that remote and passes --repo owner/repo to gh. If GitHub SSH needs a specific key, set AGENT_PBX_GITHUB_SSH_COMMAND; for repository-specific keys, set AGENT_PBX_GITHUB_SSH_COMMAND_OVERRIDES_JSON='{"owner/repo":"ssh ..."}'. Per-repo overrides take precedence over the global SSH command. The daemon status reports whether an SSH command is configured, but does not expose the command string.

GitHub Issues

Set AGENT_PBX_ISSUES_ENABLED=1 before starting the daemon to enable the Issues tab for selected agents whose metadata.cwd is inside an allowed GitHub repository. Issues reuse AGENT_PBX_GH_BIN, AGENT_PBX_PR_TIMEOUT_SECONDS, AGENT_PBX_PR_ALLOWED_REPOS, and the GitHub remote/SSH settings from the PR integration.

The Issues tab lists open issues and shows issue body, labels, assignees, milestone, URL, and recent comments. Mitigate asks the selected agent to investigate and report a fix path. In tmux direct mode the prompt is sent straight to the Codex pane; otherwise it is queued as send_input and requires the target agent to poll in use Agent PBX nohup mode.

Clearing is operator-only and disabled by default. To expose the TUI/API clear action, set AGENT_PBX_ISSUES_CLOSE_ENABLED=1; each clear still requires a mitigation summary comment and exact confirmation text such as clear issue #12. Agents can call pbx_issue_context(agent_id, issue_number) for read-only context, but there is no agent-side close/comment tool.

Joplin Notes Integration

Set AGENT_PBX_JOPLIN_API_URL and AGENT_PBX_JOPLIN_TOKEN before starting the Agent PBX daemon to enable the optional Joplin tab and MCP document export tools. Credentials stay server-side; remote TUI clients only read Agent PBX API results.

export AGENT_PBX_JOPLIN_API_URL=http://127.0.0.1:41184
export AGENT_PBX_JOPLIN_TOKEN=<joplin-api-token>
export AGENT_PBX_JOPLIN_NOTEBOOK="Agent PBX"
export AGENT_PBX_JOPLIN_BIN="$HOME/.joplin-bin/bin/joplin"
export AGENT_PBX_JOPLIN_PROFILE="$HOME/.config/joplin-agent-pbx"
export AGENT_PBX_JOPLIN_SYNC_ON_WRITE=1
agent-pbx mcp restart --token dev-token
agent-pbx tui --token dev-token

Agent PBX writes notes through the local Joplin REST API. To queue WebDAV syncs after writes, enable AGENT_PBX_JOPLIN_SYNC_ON_WRITE=1 and provide a Joplin CLI path/profile. After each create, edit, delete, COPY note, or LOG append, Agent PBX records a durable SQLite sync job and a background worker runs joplin --profile <profile> sync. Note writes return before WebDAV sync finishes. Leave this off if a separate Joplin client or background process already syncs the profile. If WebDAV sync uses E2EE, the dedicated profile must have its master key loaded; otherwise Joplin may exit successfully while reporting Master key is not loaded, and Agent PBX will surface that as a sync failure.

When first used, Agent PBX lazily creates one top-level Joplin notebook, then nests notes as project > agent. Note titles use session-id-YYYYmmddTHHMMSSZ-COPY|LOG|DOC. Copy Latest writes the selected agent's latest report to a new Markdown note. The Campaigns tab can also copy the selected campaign and its generated report detail to a new Markdown note with Copy Note (C) or /campaign copy. Start LOG creates a growing log note and appends queued operator prompts plus terminal agent responses until Stop LOG is pressed. In tmux direct mode, an active LOG appends prompts sent through Agent PBX, waits for the tmux pane to settle, then asks Codex for /copy and appends the copied response. The tab also lists scoped notes, previews Markdown, and supports quick create, rename, delete, and save controls inside the Agent PBX notebook scope only.

The project folder name comes from the caller's route-safe logical Agent PBX project identity; its absolute metadata.cwd remains separate and cannot replace that identity during a report refresh. Note list/get requests never create missing project or Agent folders. Folder creation occurs only for an explicit note-creation operation.

The Joplin tab reports targeted write health separately from whole-profile E2EE validation, for example Writes: ok | Profile: E2EE locked 17. Press Validate or use /joplin validate profile to run the strict whole-profile check. /joplin sync remains a compatibility alias. Historical failures remain in Agent PBX status/events for audit; they do not roll back a note write that completed successfully.

Encrypted items are shown as 🔒 decryption pending, never as empty notes. Agent PBX does not return encrypted payloads through its API and blocks edit, rename, delete, append, and overwrite actions until the configured Joplin profile decrypts the item. A targeted write succeeds after its declared note is verified as plaintext even when unrelated encrypted objects remain. Strict profile validation requires zero pending encrypted notes, resources, and folders; otherwise that validation job fails with JOPLIN_E2EE_LOCKED and the status line shows the pending count.

Joplin-native conflict copies are shown as ⚠ LOCAL and kept read-only because they are local recovery records without normal remote sync items. Use Promote Local twice within five seconds, or /joplin promote conflict, to create a revision-checked, uniquely titled normal note containing the same Markdown. Agent PBX preserves the readable conflict and its encrypted original; the promoted copy follows the regular targeted-sync path without requiring a whole-profile E2EE decrypt pass.

Joplin actions are available from the tab buttons and the local TUI palette/slash commands: /joplin opens the tab, /joplin refresh reloads scoped notes, /joplin new creates a scoped note, /joplin rename renames the selected note, /joplin delete confirms and deletes the selected scoped note, /joplin promote conflict safely promotes a selected local conflict copy, /joplin copy copies the latest Codex response in tmux direct mode, /joplin copy report copies the latest PBX report, /joplin log start and /joplin log stop control the growing LOG note, /joplin save saves the selected note body, and /joplin validate profile queues a strict profile validation. /joplin sync is retained as an alias for the same strict operation.

The Joplin tab buttons show their shortcut key directly, such as New n and Copy c. Press Ctrl+G then that key; when focus is outside an editable note body, j can be used instead of Ctrl+G.

The rendered reading view is keyboard-focusable and keeps a revision-scoped position for each note and preview. Arrow keys and Page Up/Page Down therefore work over desktop, SSH, and Termux without unchanged refreshes snapping back to the top. Explicit Copy actions can copy selected Markdown or the whole note. Paste is edit-only, revalidates the selected note revision, and confirms large or multiline clipboard payloads using metadata rather than echoing their text.

In tmux direct mode, /joplin copy first reads the active Codex transcript when Agent PBX knows the session id. If transcript capture is unavailable, it uses Codex /copy and a local clipboard helper such as wl-paste, xclip, xsel, pbpaste, termux-clipboard-get, or tmux show-buffer, then falls back to visible tmux capture only as a last resort. If Codex opens an interactive numbered /copy selector, Agent PBX sends Escape before continuing with the fallback path so the pane is not left blocked. The tmux LOG path records a transcript boundary before the operator prompt and only accepts transcript output written after that boundary.

Agents can call pbx_joplin_status and pbx_joplin_create_document when the operator asks for a Markdown note or document. Mermaid diagrams should be passed as fenced Mermaid blocks so Joplin can render them safely. Default tests use a fake Joplin API; for end-to-end development, run a disposable Joplin profile.

Configure WebDAV and end-to-end encryption in Joplin itself, then keep Agent PBX pointed at the local REST API. Do not persist WebDAV or E2EE decrypt passwords in local.env; enter them interactively in the dedicated Joplin profile or use an external secret helper outside Agent PBX. A headless profile can be run in tmux:

joplin --profile ~/.config/joplin-agent-pbx
# Inside Joplin: :config sync.target 6
# Inside Joplin: :sync
# If encrypted: :e2ee decrypt
# Inside Joplin: :server start

Joplin documents the terminal Data API server and terminal sync client as separate profile users. They must not operate the same profile concurrently. The safe committed default is:

AGENT_PBX_JOPLIN_PROFILE_OWNER_MODE=external

In external mode, Agent PBX refuses CLI sync while a validated same-profile Data API server is running. A dedicated single-user workstation may opt into:

AGENT_PBX_JOPLIN_PROFILE_OWNER_MODE=managed_cli

With an explicit AGENT_PBX_JOPLIN_PROFILE, Agent PBX verifies the profile server PID, process owner, executable, and command; stops that exact server; runs one profile-locked sync and restarts the Data API server. Targeted writes then verify only their declared note and do not invoke whole-profile decryption. Strict profile validation additionally runs a non-interactive E2EE decrypt retry before restoring the server and fails when decryption cannot complete. Agent PBX never stops an ambiguous or foreign process. Unrelated encrypted items remain visible as a separate profile-health warning without failing a verified targeted write.

The managed decrypt pass uses only Joplin's own cached master-key credential. Agent PBX does not receive or persist the E2EE password. If the credential is missing or Joplin's crypto worker fails, the validated API server is restored and the sync reports JOPLIN_E2EE_PASSWORD_REQUIRED or JOPLIN_E2EE_DECRYPT_FAILED. Unlock the dedicated profile interactively before retrying. If the master key already loads but the crypto worker still fails, use a supported Joplin client/runtime that can decrypt the item and keep its encrypted payload intact until recovery succeeds. Do not put the password in local.env or a command-line argument.

For E2EE troubleshooting from a shell:

joplin --profile ~/.config/joplin-agent-pbx e2ee status
joplin --profile ~/.config/joplin-agent-pbx
# Inside Joplin: :e2ee decrypt
# Then retry: :sync

The Joplin API token is still sensitive. Store it only in ${XDG_CONFIG_HOME:-~/.config}/agent-pbx/local.env or repo-local local.env with chmod 600, and treat the Joplin profile directory as private.

Files TUI Browser

The TUI includes a Files tab for the selected agent project. Agents must register with metadata.cwd; Agent PBX lists files relative to that directory and rejects absolute paths, parent traversal, and symlink escapes. Generated or noisy directories such as .git, .venv, node_modules, artifacts, and runs are hidden by default. Sensitive names and suffixes such as .env, local.env, private key files, token files, and credential files are excluded from text copy, editor, search, and diagnostics actions.

Selecting a text file shows a bounded text preview. PNG images and GIF first frames render as a terminal-native color block preview plus a grayscale text fallback when Agent PBX can decode them; other binary files and unsupported image formats show metadata such as size, MIME type, and image dimensions when detectable. Install agent-pbx[images] to enable optional Pillow decoding for additional formats such as JPEG and WebP. If chafa is installed on the host, Agent PBX can use it as a best-effort fallback renderer. The preview avoids terminal-specific image protocols, so it works across desktop terminals, SSH, tmux, and Termux.

Use the Files tab search box to run a bounded ripgrep-style project search. If rg is available on the daemon host, Agent PBX uses it with ignored and sensitive paths excluded; otherwise it falls back to a Python text search. Search results can be selected to preview a match. Copy Path copies the selected project-relative path, and Copy Text copies the full bounded text document for the selected file through the same guarded API.

The Files tab provides Open Default, Open Text, and Open Native. Open Default follows AGENT_PBX_EDITOR_DEFAULT_SURFACE; the committed fallback is textual. Open Text always loads the guarded Textual editor, while Open Native routes the selected file directly into the managed terminal editor.

The Textual editor provides syntax highlighting when Textual has a language parser available. Buffers are cached per Agent or Operator, so unsaved edits survive moving between tabs during the TUI session. Save writes UTF-8 through an optimistic lock using the loaded file hash or mtime and reports a conflict if the file changed on disk. Returning from Neovim to a clean Textual buffer refetches the file, so native-editor writes do not leave a stale editable copy. A dirty Textual buffer must be saved or reverted before its project can open in the native editor. F9 or Full F9 toggles an editor-fullscreen layout that keeps the TUI title and footer visible.

Native or /editor terminal starts or attaches a project-rooted managed editor without requiring a file to be staged in Textual. /editor workspace uses the configured default surface. When terminal is the configured default, selecting the Editor tab or running /editor workspace lazily opens that empty project workspace. Agent PBX discovers Neovim, Vim, and Nano, or reads allowlisted structured argument profiles from AGENT_PBX_TERMINAL_EDITOR_PROFILES. workspace_argv defines the fileless startup command; older profiles derive a compatible prefix before {line} or {path}. Agent PBX executes argv directly without a shell.

Neovim runtimes use a private RPC socket. Files selected through Open Native or /editor terminal open use tab drop: the initial empty buffer receives the first file, a new file opens in another tab, and a file already visible is reused without disturbing other buffers or tabs. Paths still pass the same project-root, sensitive-name, symlink, traversal, and regular-file checks as the Textual editor. Review-readonly sessions may open a managed editor only when their registered cwd is the explicit writable metadata.work_root.

Each editor runs on its own editor-only tmux server and cannot attach to, move, stop, or reuse a Codex runtime pane. /editor terminal close stops only that editor. Editor identity is stored in SQLite and validated against its tmux socket, pane, PID/start time, project root, and RPC socket after daemon or TUI restart. The default daemon shutdown policy is detach; set it to stop when daemon shutdown should end editor runtimes. If identity validation marks a saved mapping stale, /editor terminal forget removes the record only after the daemon proves the recorded editor is no longer live; it never kills an unverified process.

export AGENT_PBX_EDITOR_DEFAULT_SURFACE="terminal"
export AGENT_PBX_TERMINAL_EDITOR_PROFILES='{"nvim":{"label":"Neovim","argv":["nvim","+{line}","--","{path}"],"workspace_argv":["nvim"]}}'
export AGENT_PBX_TERMINAL_EDITOR_DEFAULT="nvim"
export AGENT_PBX_TERMINAL_EDITOR_SHUTDOWN_POLICY="detach"

Check runs best-effort diagnostics for the editor file through the daemon. Agent PBX currently supports ruff and mypy when installed on the daemon host; auto prefers the first available supported tool and returns a structured unavailable result when neither is present. Diagnostics are bounded by timeout and remain scoped to the selected agent's registered cwd.

The Agent PBX prompt composer can complete project paths with @. Type a project-relative reference such as @README or @src/ag and press Tab; Agent PBX loads the needed project directory before completing. In native tmux mode, the embedded Codex terminal remains transparent and Codex owns raw @ input. Open Ctrl+P, choose /joplin prompt, and compose there when PBX must expand a scoped reference before sending it to Codex.

Joplin project notes can be referenced with @joplin:. Type @joplin:Release and press Tab to complete project note titles; if the Joplin tab has not been opened yet, Agent PBX lazily loads the selected project's note index first. On send, Agent PBX fetches each referenced note body fresh and appends a Joplin Note References Markdown section to the prompt, so Review @joplin:weekly-updates-052926-060826 and @joplin:Release-Checklist gives Codex both note bodies in one message. If a referenced note cannot be resolved inside the selected project scope, the prompt is not sent. Reference tokens are exact note slugs; use Tab completion when title wording is unclear. With a native Codex pane focused, use Ctrl+P → /joplin prompt; typing @joplin: directly into Codex invokes Codex's own @ behavior and is not intercepted by Agent PBX.

Operator prompts can reference caller agents with @caller:. Select an operator agent, type @caller:project or @caller:Backend, and press Tab to complete known caller agents from the Agents table. When an operator prompt uses @caller:, following @joplin: references resolve in that caller's project note scope until another @caller: appears. For example, @caller:api @joplin:Runbook @caller:web @joplin:Runbook can attach two different Runbook notes from two caller projects. On send, a @caller: reference creates or reuses that caller's fork, keeps the prompt on the root operator session, and appends a Caller Agent References Markdown section with the exact agent_id, project, PBX mode, status, active campaign count, active fork identity, and tmux pane when known.

Operator prompts can also reference GitHub pull requests and issues with @pr:<number> and @issue:<number>, or natural references such as PR #7, pull request #7, and issue #12. These references scope to the nearest preceding @caller: token. If the operator was started from a caller, that caller is implied, so Review PR #7 and assess issue #12. loads context from the source caller's repository without an explicit caller tag. If an operator has no implied source and a prompt contains exactly one @caller:, PR or issue references before that tag also use that caller, so Review PR #7 for @caller:api and assess issue #12 works as expected. Prompts may mix multiple caller scopes; Agent PBX fetches read-only PR and issue detail before send and appends a GitHub PR and Issue References Markdown section.

The Joplin tab lists notes from the selected project folder and its descendants under the Agent PBX notebook. That means notes created directly in Joplin under the project can be opened, edited, renamed, saved, deleted, and referenced from Agent PBX. COPY and LOG actions still create agent/session notes so response captures and growing logs remain attributable to a specific agent run.

Debug Runs

Use --debug on the foreground server or daemon for verbose PBX request and MCP tool logs. Use --transcript on simulator commands to write JSONL CLI transcripts:

agent-pbx mcp serve --debug --token dev-token
agent-pbx sim-agent --token dev-token --transcript runs/sim-agent.jsonl
agent-pbx sim-client --token dev-token --agent-id sim-agent-1 \
  --message "Proceed" --transcript runs/sim-client.jsonl

For a bounded TUI smoke feed, add --debug-smoke or set AGENT_PBX_DEBUG_SMOKE=1. This registers sun-tzu-smoke-1 through sun-tzu-smoke-3, emits one or two short Sun Tzu quote reports immediately and then every random 30-60 seconds, and stops after five minutes.

agent-pbx mcp start --debug --debug-smoke --token dev-token

TUI Notifications

The TUI keeps visual flash and terminal bell notifications off by default for the localhost workflow. Enable either at launch with environment variables:

AGENT_PBX_TUI_FLASH=1 agent-pbx tui --token dev-token
AGENT_PBX_TUI_BELL=1 agent-pbx tui --server http://192.168.1.25:8765 \
  --token dev-token

For a local container image, bake defaults in with build args:

docker build --build-arg AGENT_PBX_TUI_FLASH=1 \
  --build-arg AGENT_PBX_TUI_BELL=1 \
  --build-arg AGENT_PBX_TUI_AGENT_BLINK=1 \
  --build-arg AGENT_PBX_TUI_THEME=1337 \
  --build-arg AGENT_PBX_TUI_CUSTOM_THEME_NAME=1337 \
  -t agent-pbx:tui .

The same options are available from the TUI Settings screen with the s hotkey. Alerts fire for new agent registrations, new reports, and command acknowledgements. The Agents table also highlights unseen latest reports with NEW, and the top alert bar blinks for unseen latest reports by default. Click the blinking alert to jump directly to the first unseen agent's Latest tab. Disable that with AGENT_PBX_TUI_AGENT_BLINK=0 or the Unseen blink setting.

The TUI layout defaults to adaptive: wide terminals use a side-by-side Agents/right-pane split, narrow terminals use compact full-width agent views, and very small terminals use a tiny mode that shows only Agents or Events on the home screen. Override with AGENT_PBX_TUI_LAYOUT=adaptive|split|compact|tiny or the Layout setting. Selecting an agent in compact or tiny mode opens a full-width view with Latest, Thread, Files, WorkerBee, PRs, Issues, Campaigns, and configured optional tabs such as Joplin; press b to return to the agent list. In tiny mode, press e on the home screen for Events and a to return to Agents.

For very low-power terminals where the TUI is mostly an alert board, enable low-power watch mode. It keeps server event alerts active, slows periodic safety refreshes, avoids rendering hidden Events in tiny mode, and skips hidden selected-agent detail refreshes until you open an agent:

AGENT_PBX_TUI_LAYOUT=tiny \
AGENT_PBX_TUI_THEME=cyberpunk \
AGENT_PBX_TUI_TMUX=0 \
AGENT_PBX_TUI_LOW_POWER=1 \
AGENT_PBX_TUI_AGENT_REFRESH_SECONDS=15 \
AGENT_PBX_TUI_ATTENTION_BLINK_SECONDS=3 \
agent-pbx tui --server http://192.168.1.25:8767 --token "$AGENT_PBX_TOKEN"

In split layout, adjust the Agents/right-pane width with [ and ]; press 0 to reset to the default 42% Agents width. The same controls are available from Settings, and AGENT_PBX_TUI_SPLIT_PERCENT=25..75 can set the launch default. Mouse-drag splitters are intentionally deferred because the current Textual version does not provide a native splitter and keyboard controls work better over SSH and mobile terminals.

Use g followed by 1 through 9 to jump directly to the first nine visible agents' Latest tabs; g then 0 jumps to the tenth visible agent. The sequence is ignored while typing in follow-up inputs, avoiding terminal Alt+number tab-switching conflicts.

Press p from the Agents table, or use Star/Unstar, to pin an agent near the top of the Agents list. Starred agents are sorted by latest activity above unstarred agents, which are also sorted by latest activity. Star selections sync through the Agent PBX server so a workstation TUI and a remote watch TUI show the same pinned agents; the TUI settings file keeps a local cache/fallback. Press h or Show Hidden to include hidden agents in the Agents table; hidden rows show a Hidden marker. Select a hidden row and press H or Unhide to restore it without waiting for the agent to reconnect.

For high-volume cleanup, use Prune or /agents prune to preview a reversible batch hide of old unstarred terminal caller sessions. The default preset keeps starred agents, operators, operator forks, queued agents, active campaigns, and agents involved in active operator forks, handoffs, knowledge links, or project spawn requests. /agents prune apply applies the latest preview using fresh live state, and /agents prune undo restores the latest unapplied batch. /agents prune stale previews old stale nonterminal callers, and /agents prune forks previews old operator forks only when they have no recorded tmux pane and no active operator relationship. Bulk prune is hide-only; bulk thread purge is intentionally not supported.

Press Ctrl+P to open the command palette. Agent PBX adds slash-style operator commands such as /detail, /ping, /esc, /ctrlc, /restart, /tmux, /workerbee, /campaigns, /campaign report, /campaign copy, /operator fork prev, /operator fork next, /operator fork review, /operator handoffs, /operator handoff preflight, /operator handoff approve, /operator handoff launch, /operator knowledge links, /operator knowledge send, /operator kb, /operator kb detail, /operator kb proposed, /operator kb proposed detail, /operator kb seed, /operator kb compile, /operator kb reindex, /operator kb promote, /operator kb reject, /operator kb retire, /operator project spawn, /codex update, /pr, /pr refresh, /pr review, /pr validate, /pr url, /pr merge, /issue, /issue refresh, /issue mitigate, /issue url, /issue clear, configured /joplin, /joplin new, /joplin rename, /joplin delete, /joplin copy, /joplin copy report, /agents prune, /agents prune apply, /agents prune stale, /agents prune forks, /agents prune undo, /show hidden agents, /unhide agent, /palette history, /palette history clear, /navigation back, /navigation forward, /editor terminal, /editor terminal close, /editor terminal forget, /workerbee switch oss, /workerbee switch debug, /workerbee switch rollback, /theme minimal, and /layout compact. /cancel marks a stale or abandoned session canceled in PBX; it does not send an Escape key. Use /esc when you need a real Escape key event. In tmux direct mode, /esc sends tmux send-keys Escape to the selected Codex pane. Outside tmux direct mode, it queues a send_key command with key="escape" for nohup-mode agents that poll PBX. Use /ctrlc in tmux direct mode to send tmux send-keys C-c to the selected Codex pane, for example to back out of a /side chat. Use /restart or /codex restart in tmux direct mode to type Codex /quit, wait briefly for Codex to exit (the containing shell may remain), then relaunch the known Codex session when Agent PBX can recover its metadata. If the retained Agent or Operator has no ready v2 runtime mapping, the same explicit restart creates a fresh pane on the configured managed tmux server, resumes the preserved Codex session, registers and verifies the new mapping, and leaves the stale or absent pane reference behind. Agent PBX refuses to create a pane when the daemon cannot verify mapping state, preventing an unreachable runtime from being duplicated. Use /codex update to ask the Agent PBX daemon to run the allowlisted npm update for @openai/codex, then use /restart or /codex restart to move long-lived caller, root-operator, and fork panes onto the updated executable. TUI-owned operators and forks can be relaunched automatically; caller panes require a known Codex session id and restart through the current configured shell codex command when no pinned command is stored.

In the Agent PBX prompt composer, type / and press Tab to complete slash commands inline, or type @ and press Tab to complete project paths. Type @joplin: and press Tab to complete project-scoped Joplin note titles from cache, with lazy loading on first use. In operator prompts, @joplin: completion uses the nearest preceding @caller: scope when one exists. Type @pr: or @issue: and press Tab to complete cached or lazily loaded source-repository pull request and issue numbers; operator completion uses the nearest preceding @caller: or the operator's implied source caller. Type @caller: while an operator is selected to complete caller agent references. Repeated Tab cycles matches; exact local commands such as /esc or /theme minimal execute locally on Enter instead of being sent to the agent.

When Latest contains the native embedded Codex terminal, open the PBX command palette with Ctrl+P and choose /joplin prompt for @joplin: completion and expansion. Raw / and @ typed in the terminal remain native Codex input.

Use /plan to toggle Codex plan mode for the selected agent. In tmux direct mode, Agent PBX types /plan with tmux key events so Codex handles it as an interactive slash command; outside tmux mode, it queues the same send_input command for agents that poll PBX.

When a plan response presents choices, reply from the Latest input or palette with /plan:1 optional notes or /plan sel:1 optional notes. Agent PBX turns that into the normal Selected plan option: follow-up and preserves structured choice metadata when the latest report or selected thread item includes plan_options. Palette entries such as /plan latest 2: ... and /plan thread 1: ... prefill the reply syntax for quick editing. When tmux direct mode is enabled for the selected agent, the palette also exposes git helpers: /gitstatus sends !git status, /gitdiff opens an optional target prompt and sends !git diff, /gitpush sends !git push origin HEAD by default or !git push origin <branch> when given a branch/ref, and /gitstageandcommit asks Codex to stage and commit the current changes. From the Latest input, use /gitpush for the current branch or /gitpush dev for an explicit branch/ref.

Custom palette slash commands can be defined in ${XDG_CONFIG_HOME:-~/.config}/agent-pbx/slash-commands.json, or another file set with AGENT_PBX_TUI_COMMANDS_FILE=/path/to/slash-commands.json. They are local TUI shortcuts for tmux direct mode: Agent PBX sends the configured prompt into the selected agent's Codex pane, but does not create MCP tools or PBX queued commands. Reload them without restarting the TUI with /commands reload.

{
  "commands": [
    {
      "name": "/review",
      "description": "Ask Codex to review current changes",
      "prompt": "review the current changes"
    },
    {
      "name": "/testfile",
      "description": "Run focused tests for a target",
      "prompt": "run focused tests for {arg}",
      "arg_label": "Target",
      "arg_placeholder": "tests/test_tui.py",
      "arg_required": true
    },
    {
      "name": "/shell",
      "description": "Run a Codex passthrough command",
      "prompt": "!{arg}",
      "arg_label": "Command",
      "arg_required": true
    }
  ]
}

Each command needs a slash-prefixed name and a non-empty prompt. Built-in palette names win over custom names, and duplicate custom names are skipped. {arg} is the only supported placeholder; commands that use it open a small input prompt before sending.

The palette keeps a bounded, deduplicated history of selected command names. Up and Down traverse that history only while the palette input owns focus. Prompt bodies and command arguments are never recorded, sensitive command classes are excluded, and persistence is off by default. Use /palette history to inspect it, /palette history clear to erase it, and /palette history persistence on|off to control private local persistence.

Custom Theme Creation Guide

Agent PBX ships with the original cyberpunk, the opt-in deuteranopia-friendly cyberpunk-accessible with visibly distinct deep-teal surfaces and stronger foreground contrast, minimal, and the bundled custom 1337 theme. To create your own theme, rename the custom theme, select it, then override the color slots with environment variables. Keep personal palettes in your gitignored local.env or shell profile.

AGENT_PBX_TUI_CUSTOM_THEME_NAME=aurora \
AGENT_PBX_TUI_THEME=aurora \
AGENT_PBX_TUI_CUSTOM_PRIMARY="#7dd3fc" \
AGENT_PBX_TUI_CUSTOM_SECONDARY="#c084fc" \
AGENT_PBX_TUI_CUSTOM_WARNING="#facc15" \
AGENT_PBX_TUI_CUSTOM_ERROR="#fb7185" \
AGENT_PBX_TUI_CUSTOM_SUCCESS="#4ade80" \
AGENT_PBX_TUI_CUSTOM_ACCENT="#f0abfc" \
AGENT_PBX_TUI_CUSTOM_FOREGROUND="#e5eefc" \
AGENT_PBX_TUI_CUSTOM_BACKGROUND="#050814" \
AGENT_PBX_TUI_CUSTOM_SURFACE="#0f172a" \
AGENT_PBX_TUI_CUSTOM_PANEL="#111827" \
AGENT_PBX_TUI_CUSTOM_BOOST="#1e293b" \
agent-pbx tui --token dev-token

Use FOREGROUND and BACKGROUND for normal text and the terminal base. SURFACE and PANEL shape input boxes, modals, and panes. PRIMARY, SECONDARY, and ACCENT drive active UI elements and borders. SUCCESS, WARNING, and ERROR preserve operational meaning, so keep them distinct. BOOST is a stronger contrast color used for highlights. After launching, use Settings -> Theme or /theme <name> from the palette to switch back to your custom theme if another theme is selected.

The Agent PBX frame theme and the Codex code/diff syntax theme are separate surfaces. Install and select the managed Codex theme with:

agent-pbx codex theme install
agent-pbx codex theme status

The installer writes agent-pbx-1337.tmTheme under $CODEX_HOME/themes, updates only tui.theme in Codex configuration, creates a configuration backup when one already exists, and refuses to overwrite a drifted or unsafe theme file unless --force is explicitly supplied after review. Existing Codex processes must be restarted/resumed at a safe turn boundary before a corrected process environment and startup theme are guaranteed to take effect. doctor reports both managed-theme posture and a stale NO_COLOR retained by the dedicated runtime tmux server.

Managed Workspace Launch

The v2 project picker discovers Git repositories beneath daemon-approved roots. Configure one or more roots in the daemon environment; use : between roots on Linux and macOS:

AGENT_PBX_PROJECT_ROOTS="$HOME/git:$HOME/worktrees"

The daemon reads this value at startup, so restart the Agent PBX daemon after changing it. Press F10 or run /workspace launch to choose a repository and launch either a caller Agent or a caller Agent plus its root Operator and default edit fork. /agent launch remains an alias for the same picker, while /operator start and Shift+O start an Operator for the selected registered caller. Plain F10 remains PBX-owned under embedded-terminal focus; Shift+F10 sends F10 to Codex.

Agent PBX v2 enables the native local tmux path by default when the TUI uses a loopback daemon and tmux is available. Latest embeds a PTY-backed normal tmux client attached to the selected PBX-managed runtime. Codex keeps its native selectors, warning view, approvals, paste, mouse, resize, cursor state, and tmux scrollback. The captured pane renderer and separate input remain available as a compatibility fallback in Agent PBX 2.2.0. Legacy-path removal still requires measured parity, a supported migration path, and published notice.

The committed runtime-server default is dedicated, which works whether or not the TUI itself runs in tmux. Set AGENT_PBX_TUI_TMUX_RUNTIME_SERVER_MODE=outer_if_present in a private workstation config to reuse a validated outer tmux server and enable targeted switch-client pop in/out over local or SSH clients. Same-server mode rejects recursive attachment to the PBX TUI session, namespaces managed sessions, and targets only the initiating client.

Set AGENT_PBX_TMUX_BIN to an absolute executable path when Agent PBX should use a qualified tmux build without replacing the host package. The daemon, TUI, embedded clients, managed launches, reconciliation, and doctor use the same selection. Runtime mappings record the binary that created them so a legacy server can retain its matching client during a staged migration. Set AGENT_PBX_TMUX_RUNTIME_SOCKET to an absolute user-owned socket path when separate Agent PBX installations or qualified tmux versions must use distinct failure domains. The default remains the user-local $XDG_RUNTIME_DIR/agent-pbx/runtime-tmux.sock.

AGENT_PBX_TUI_TMUX=1 and AGENT_PBX_TUI_EMBEDDED_TERMINAL_V2=1 explicitly enable the native local path. Press Ctrl+T from Latest to toggle it for the selected entity. Tmux controls are disabled when tmux is unavailable or the API URL is remote. Use agent-pbx remote ssh-attach for full-fidelity remote terminal access; the WSS client is the observer/control path.

Plain configured function keys remain global PBX navigation even under terminal focus: F1 Agents, F2 Events, F3 view, F4 input, F5 Operators, F6/F7 fork navigation, F8 next alert, F9 editor, F10 workspace launch, and F11/F12 navigation back/forward. Repeated F8 presses focus and acknowledge one displayed Agent/Operator alert at a time. Shift+F1–F12 is translated to unmodified child F1–F12. Thus F2 always focuses Events while Shift+F2 opens Codex warnings. The input layer also recognizes xterm F13–F24 aliases, and the key probe documents terminal-specific SSH or Termux sequences.

After F3 focuses the right-side tab row, Shift+F1–F11 select the stable Latest, Codex, Thread, Files, Editor, WorkerBee, PRs, Issues, Campaigns, KB, and Joplin destinations. 1..9, 0, and - provide a portable fallback while the tab row has focus. These shortcuts are focus-scoped: under Codex or Neovim focus, Shift+F keys continue to reach the child terminal.

F11/F12 history is private to each TUI process and records stable entity/tab identities, not row positions. It skips hidden, deleted, or unavailable destinations safely. /navigation back and /navigation forward expose the same traversal from the palette.

Managed sessions pin Enter to submit and Ctrl+J to editor newline. The embedded terminal normalizes Shift+Enter, Alt+Enter, and Ctrl+Enter to that portable newline when the client reports those combinations distinctly. Use /pbx keymap for the combined ownership map and /codex keymap for Codex's native keymap viewer.

The runtime tmux server owns scrollback; managed Codex profiles use alternate_screen = "never". The embedded client is disposable, and closing or restarting the TUI does not stop Codex. Only one client receives the writer lease; observers cannot inject input or control authoritative geometry. With tmux-owned scrolling enabled, Page Up enters and scrolls copy mode; arrows and Page Up/Page Down then navigate history. /tmux scrollback remains the explicit Android/Termux and SSH fallback.

The retained capture fallback uses AGENT_PBX_TUI_TMUX_CAPTURE_LINES and AGENT_PBX_TUI_TMUX_REFRESH_SECONDS. Set AGENT_PBX_TUI_COMPAT_TERMINAL_CAPTURE=0 only after native-terminal parity is confirmed on that host. AGENT_PBX_COMPAT_POLLING and AGENT_PBX_TUI_COMPAT_THREAD independently gate the other retained v2.0 paths. Doctor and /healthz report this compatibility posture.

The daemon's read-only Codex event bridge associates structured subagent threads and recent lifecycle items with the exact Codex thread already bound to an Agent or Operator. The right-side runtime tree above Latest then shows the bounded child lifecycle beneath that owner. It remains hidden until capability is observed and excludes child prompts, paths, hidden reasoning, tool content, and path-derived roles. AGENT_PBX_CODEX_EVENT_BRIDGE=0 disables the bridge; AGENT_PBX_CODEX_EVENT_BRIDGE_TRANSPORT=sidecar bypasses shared-daemon probing. Qualification evidence is recorded in the v2.1.2 subagent activity note.

On tiny terminals the existing compact controls remain available. Android Termux can emit F8 with Volume Up+8; terminals that cannot distinguish shifted function keys can use the configured PBX leader fallback. Touch focus debugging remains available with AGENT_PBX_TUI_MOUSE_DEBUG=1.

For local tmux-direct testing, use report mode unless you specifically need PBX queued follow-ups: tell the agent use Agent PBX, not use Agent PBX nohup. The TUI will still show reports, plan alerts, and thread history, while interaction goes directly through tmux and does not require poll or ping cycles.

TUI checkbox, layout, and theme selections persist between sessions in ${XDG_CONFIG_HOME:-~/.config}/agent-pbx/tui-settings.json. Set AGENT_PBX_TUI_SETTINGS_FILE=/path/to/tui-settings.json to use a different settings file. Explicit environment variables still override saved settings for that launch.

The default TUI theme uses a cyberpunk palette with neon cyan, magenta, yellow, and green over a dark terminal base. Use the Theme selector in Settings or set AGENT_PBX_TUI_THEME to choose another built-in theme. minimal uses a plain black/white terminal base while preserving semantic highlight colors for alerts, status, and activity. cyberpunk-accessible uses a deep-teal surface stack and high-contrast cool status colors so it remains visibly different from the original navy/purple cyberpunk theme. 1337 keeps the black and bright-green terminal look. See the custom theme guide above for user-defined palettes.

TUI History Thread

Select an agent and open the Thread tab to review that agent's historical reports, follow-up inputs, detail requests, and command results. The thread is compact by default; selecting a row shows the full report detail or command payload/result in the thread detail pane.

Use Hide Agent or press d from the Agents list to remove a stale agent from the view while keeping its thread history. Use Purge Agent or press D to hide the agent and delete its reports, queued commands, command history, and poll stats. Hidden agents reappear when they register again, or when you enable Show Hidden and use Unhide.

/agents prune is the safer bulk path for crowded Agent panes. It previews the candidate list in the detail pane before making changes. /agents prune apply hides the currently previewed class of agents in one batch and records a prune batch; /agents prune undo unhides agents from the latest unapplied batch. Single-row hide also preserves cursor position by moving to the nearest remaining row after refresh.

When a report includes plan_options, the Latest and Thread tabs show a plan-choice panel. Agents must set needs_input=true and plan_options=[...]; writing choices only in report text creates history, but the operator still replies with /plan:N syntax. In nohup mode, the reply is queued as a normal send_input follow-up. In report mode with tmux direct enabled, the same reply is sent directly into the local Codex pane without requiring the agent to poll. Plan options may be strings or objects with id, label, and optional description. Object options let the TUI include stable choice metadata in the queued send_input payload while preserving the human-readable Selected plan option: message.

Use Space on a Thread row to mark it, then export Item, Marked, or All to Markdown under artifacts/thread-exports/. Set AGENT_PBX_TUI_EXPORT_DIR=/path/to/exports to change the destination.

In the follow-up composer, Enter sends the input. The message field defaults to 8 rows. Use Shift+Enter to add new lines for longer Markdown or code snippets when your terminal reports that key distinctly. Use Ctrl+J or Alt+Enter as terminal-safe newline fallbacks. Long lines soft-wrap, and the input expands up to 15 rows with vertical scrolling when needed. The composer hotkey strip lists editing controls such as Ctrl+W for delete previous word.

The thread is also available through the API:

curl -H "Authorization: Bearer $AGENT_PBX_TOKEN" \
  "http://127.0.0.1:${AGENT_PBX_PORT:-8765}/v1/agents/<agent-id>/thread"

Hide an agent from /v1/agents while retaining its thread:

curl -X DELETE -H "Authorization: Bearer $AGENT_PBX_TOKEN" \
  "http://127.0.0.1:${AGENT_PBX_PORT:-8765}/v1/agents/<agent-id>"

Add ?delete_thread=true to purge that agent's thread data while hiding it.

Agent PBX Session Semantics

When an agent is asked to use Agent PBX for a session, it should keep using PBX until the operator explicitly asks it to stop or starts a new session. Default use Agent PBX is report mode: the agent reports meaningful turn status with pbx_report_turn and must not poll. use Agent PBX nohup is explicit queue pickup mode: the agent reports, registers pbx_nohup_explicit=true, polls queued commands with pbx_poll_commands, and acks handled commands with pbx_ack_command(agent_id=...). A command can be acknowledged only after it has been delivered to, and is owned by, that agent.

Request Detail queues a request_detail command. A new detailed report appears only after the target agent polls that command and responds with a new pbx_report_turn, so it is intended for nohup-mode agents. For local tmux-direct workflows, send the request directly to the Codex pane instead.

Agent status is last-reported state plus a derived effective state. If an agent last reported working or running and has not checked in for ten minutes, the API/TUI shows stale-working or stale-running while preserving the raw last reported status. Use Mark Canceled in the Latest controls when an agent was cancelled from its CLI session and can no longer report cleanup itself; this writes a status="canceled" report to the thread and clears the working state. Use /esc instead when the goal is to dismiss or back out of an active Codex prompt, modal, or plan UI. Use /ctrlc in tmux direct mode when the Codex UI expects Ctrl+C, such as returning from a /side chat.
