Agy - Small Agent Flow Engine

Agy is a Python library for building, executing, validating and testing agent-based workflows with a compact flow language called FLOWSY.

Features

• FLOWSY flow definition Setup agent workflows really fast with a simple, indentation-based format (FLOWSY - Flows. Simple. YAMLish)

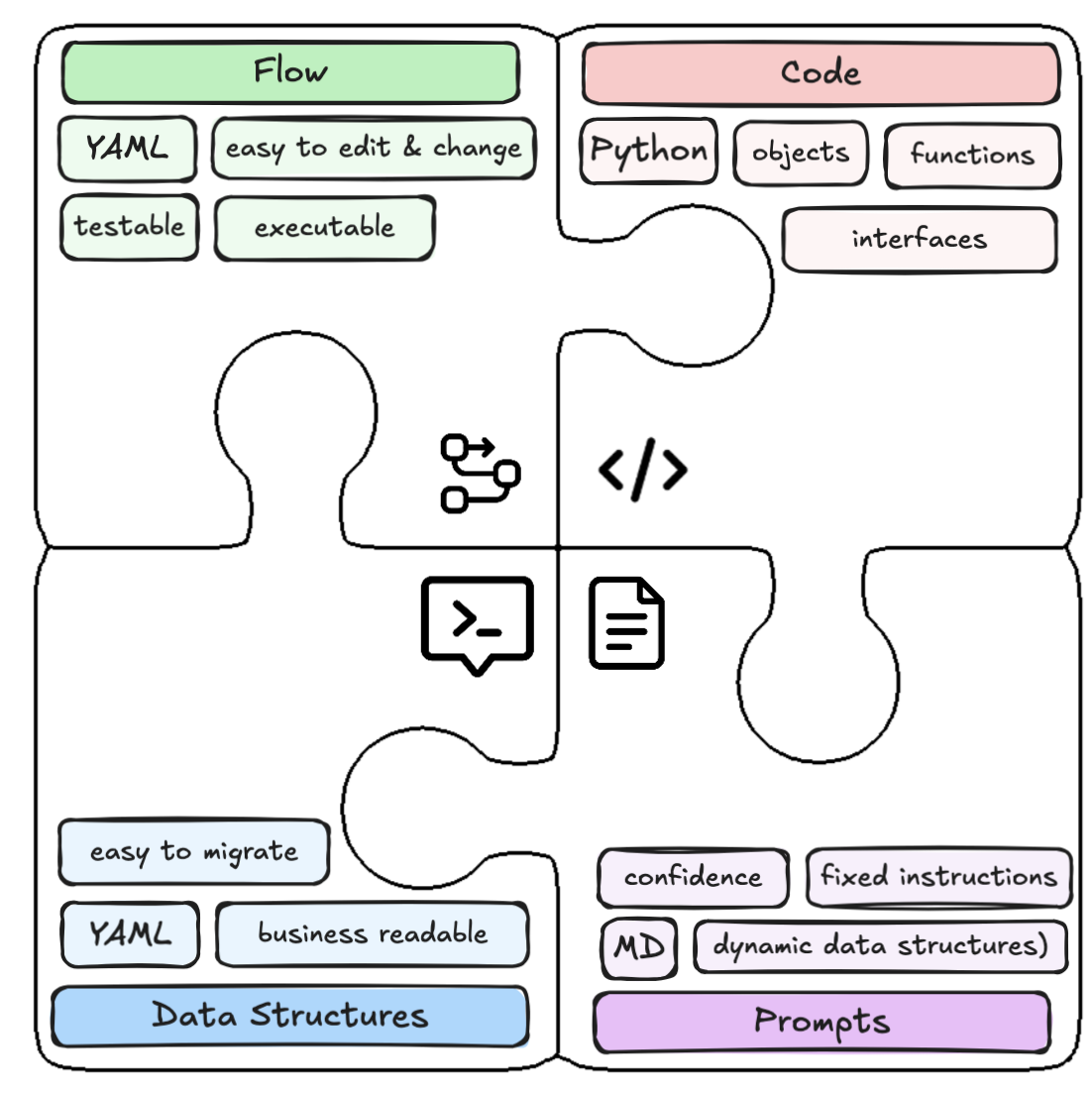

• Clean separation of process flow, data, prompt and code Flow and data structures can be edited and changed without the need to change the code
• Agy Flows can be executed automatically they can be changed, verified and tested put into production without deployment
• Agy Data Structures can be maintained easily They can be changed, updated, verified, migrated without changing the code of the application or database tables manually
• Write instructions instead of maintaining full prompts Use reusable instruction files and templates for LLM actions.
• Built-in validation and execution Validate flows before runtime and execute them with strict context checks.

Quick Start

Option 1: Initialize with agy init (recommended)

# Install agy globally with uv
uv tool install agy

# Create a new project from template
agy init --template email_routing_mock
# or: agy init
# or: agy init --template software_support_jira
# or: agy init --template email_routing_gmail
# or: agy init --template email_routing_graph
# or: agy init --template email_routing_imap_smtp

# Setup and run
cd agy_email_routing_mock
uv sync
uv run python main.py

Option 2: Add to existing project

uv add agy

Or with pip:

pip install agy

Installation Scope

The first public release keeps Email and Jira integrations in the core package, so the templates work without extra dependency groups:

uv sync

Environment Variables

For a complete list of required and optional environment variables (LLM providers, Jira, Graph/Gmail/IMAP-SMTP email, and safety settings), see:

• docs/agy/ENVIRONMENT_VARIABLES.md

For runnable repository examples, use:

cp .env.example .env

Then set values required by the examples you run (JIRA_URL, JIRA_TOKEN, JIRA_ISSUE_KEY, JIRA_JQL, OPENAI_API_KEY).

More on the project structure: See docs/agy/CLI_PROJECT_STRUCTURE.md

Migrating From Private Git Installs

If an existing project installed Agy from a private Git URL, switch to the public package:

[project]
dependencies = ["agy>=1.0.0"]

The Python import path is unchanged (import agy). See docs/AGY_VS_AGY_PRIVATE.md for a full migration guide from agy-private 0.8.1.

Define A Flow (Email)

Create a simple email routing flow that classifies emails and routes them to the appropriate department.

1. Define the flow (email_routing_flow.flowsy):

name: Email Routing Flow
description: Classify and route customer emails
context_in:
  email: Email

nodes:
  classify_email:
    actions:
      - category = classify(input_text=email.text, categories=["sales", "support", "billing"], instruction_file="prompts/email_classify_instruction.md")
    edges:
      - confidence < 0.8: handle_unclear
      - category == "sales": handle_sales
      - category == "support": handle_support
      - category == "billing": handle_billing

  handle_sales:
    actions:
      - email.forward("sales@example.com")
      - email.move("processed")

  handle_support:
    actions:
      - answer = respond(input_text=email.text, instruction="Provide helpful support answer")
      - email.reply(answer)
      - email.move("processed")

  handle_billing:
    actions:
      - answer = respond(input_text=email.text, instruction="Handle billing inquiry professionally")
      - email.reply(answer)
      - email.move("processed")

  handle_unclear:
    actions:
      - email.move("human_team")

2. Run the flow (main.py):

import asyncio
from agy import Flow
from objects.email import Email

async def main():

    # Create email object
    email = Email(
        sender="customer@example.com",
        recipient="support@company.com",
        subject="Urgent",
        text="I need help with my invoice #12345. I was charged twice.",
    )

    # Validate the flow once against the expected context classes (optional)
    validation_result = Flow.validate("email_routing_flow.flowsy", context_in={"email": Email})
    if not validation_result.is_valid:
        print(f"Validation failed: {len(validation_result.errors)} errors")

    flow = Flow.from_flowsy("email_routing_flow.flowsy")

    # Execute flow with concrete object instances
    result = await flow.run(context_in={"email": email})

    print(f"Category: {result.get('result')}")
    print(f"Confidence: {result.get('confidence')}")

asyncio.run(main())

Try it yourself:

# if you have not done it:
uv run agy init --template email_routing_mock
cd agy_email_routing_mock

# make sure, that you have your personal model key of the model you want to use in your ENV
# Default model in the pyproject.toml is a (small) OPENAI model, please change, if your favorite model is a different one
export OPENAI_API_KEY="sk-........................"

python main.py

Second simple example

See docs/integrations/EMAIL.md and docs/agy/FLOW.md for complete end-to-end examples.

Example for data structures

Use context_in to inject domain objects (for example Email, JiraClient) and call their methods directly in flow actions.

Agy flow structure

📖 Complete Parsing Reference: For detailed information about the .flowsy file format, indentation rules, expression syntax, and parsing details, see docs/agy/FLOW_PARSING.MD.

A flow consists of:

• Metadata (name, description)
• Inputs (context_in)
• Nodes (ordered processing steps with actions)
• Edges (conditional routing to next nodes or end(...))

Flow Metadata

name: My Flow
description: Brief description of what this flow does
context_in:
  variable_name_1: TypeName2
  variable_name_2: TypeName2

• context_in: Input parameters passed to the flow
  • Can be simple types (str, int) or custom objects (Email, Document, etc.)
  • Accessible in all nodes via variable names, their attributes and methods: "email.reply (...)"

Nodes

Nodes are the building blocks of your flow. Each node has:

nodes:
  node_name:
    actions:
      - action1()
      - result = action2(param=value)
    edges:
      - condition: target_node
      - True: fallback_node

• Node name: Identifier for this step in the flow
• Actions: List of operations executed sequentially
• Edges: Conditional routing to next nodes

Stochastic Nodes

Stochastic nodes delegate one or more natural-language requests to an agent object from context_in. The agent must expose a callable run(...) method. Agy normalizes the agent result and writes the final output, message, all intermediate outputs, success, error_msg and result into the flow context before evaluating edges.

context_in:
  consc: Consciousness
  project_name: str

nodes:
  summarize_yesterday:
    type: stochastic
    agent: consc
    requests:
      - f'Find all mails discussing {project_name} in all different spellings in the mails of the last two weeks.'
      - "Create a Markdown table with content, sender and urgency."
      - "Add an answered column showing whether I answered the topic in substance."
    output: email_report_md
    message: agent_message
    edges:
      - success == True: send_report
      - True: end(success=False, error_msg=error_msg)

  send_report:
    actions:
      - df = format_md_to_pd(email_report_md)
      - filename = save_df_to_excel(df)

Agent return values are normalized to an AgentRequestResult shape with outputs, output, message, success, error_msg and raw. Returning a plain string is also supported and is treated as a successful output.

Each requests: entry may be plain text or a Python expression evaluated with the current flow context before calling agent.run(...). Evaluated request expressions must return a string.

Actions

Actions are operations executed within a node:

actions:
  # Simple action call
  - show("Hello, here I am")

  # Action with result assignment
  - result = classify(input_text=text, categories=["legal", "business", "scientific"])

  # Object method calls
  - database.save(record)
  - api.send_request(data)

*Built-in actions, LLM:**classify(), respond(), extract()*IO:

load_files_text(), show() FLow Control: end() Details: see below

Edges

Edges define the flow routing from one node to another:

edges:
  # Conditional edge (evaluated in order)
  - confidence < 0.8: low_confidence_handler
  - category == "urgent": urgent_handler

  # Unconditional edge (fallback)
  - True: default_handler

  # Implicit termination of the flow
  # finalizing the last action of a node WITHOUT edges => successful termination of the flow

Flow Actions, Built-in & Custom

Actions are the executable operations within flow nodes. They are processed sequentially by the ActionExecutor and can modify the flow's context.

Action Execution Flow

1. Sequential Execution: Actions in a node are executed one by one in the order they appear
2. Context Updates: Each action can read from and write to the shared context dictionary
3. Error Handling: If an action fails (success=False in context):
   • Remaining actions in the node are skipped
   • Execution jumps to edge evaluation
   • Edges can route to error handling nodes
4. Termination: The end() action immediately terminates the flow with custom context values

Example:

nodes:
  example_node:
    actions:
      - result1 = action1()  # Executes first
      - result2 = action2()  # Executes only if action1 succeeded
      - action3()            # Executes only if action1 & action2 succeeded

Action Types

Two types of actions:

1. Global Functions (global_function actions)

   • Registered in ActionRegistry
   • Called by name: classify(), respond(), show()
   • Built-in contrib actions are auto-loaded
   • Custom actions registered via flow.run(action_types=[...])

2. Object Methods

   • Called on objects from context_in
   • Syntax: object_name.method_name(args)
   • Example: email.reply("Thanks"), document.save()

Built-in Actions (Contrib)

High-Level LLM Actions

All LLM actions return a dictionary with their result and a confidence value (0.0-1.0) that is automatically written to the context for flow routing decisions.

classify() - Classifies text based on generic classification prompt, custom categories and optional instructions/augmentation

nodes:
  - classify_document:
      actions:
        - category = classify(input_text=document.text, categories=["legal",
          "business", "financial"], instruction_file="cat_guide_acme.md")
        # Returns: category="legal", confidence=0.85 (both in context)
      edges:
        - confidence < 0.7: manual_review
        - category == "legal": process_legal_doc
        - category == "business": process_business_doc
        - category == "financial": process_financial_doc

respond() - Generates text using generic respond prompt, optional instructions and augmentation context

- answer = respond(input_text=query, instruction_file="prompts/response.md", augmentation=search_results)
# Returns: answer="Generated text...", confidence=0.92 (both in context)

extract() - Extracts structured data using generic extract prompt and schema definition

- invoice = extract(input_text=invoice_pdf_text, values_to_extract={"invoice_number": "str", "total": "float", "date": "str"})
# Returns: invoice={"invoice_number": "INV-123", "total": 1500.50, "date": "2025-01-15"}, confidence=0.88

Note: All LLM actions return their result and write confidence (0.0-1.0) to context for easy access in edges.

Low-Level LLM Actions

• **set_model_call(provider, model, **kwargs)** - Configure LLM provider/model for all subsequent LLM actions (OpenAI, Azure OpenAI, Gemini, Anthropic, or custom)
• **model_call(prompt, **kwargs)** - Direct LLM call with custom prompt (uses configured provider/model)
• get_prompt_from_str(template, **kwargs) / get_prompt_from_file(file_path, **kwargs) - Format prompts with variables

Multi-Provider Support:

• Default provider/model configured in pyproject.toml [tool.agy.llm]
• Override per-flow with set_model_call(provider="anthropic", model="claude-haiku-4-5-20251001")
• Supported providers: OpenAI, Azure OpenAI, Google Gemini, Anthropic Claude, Fake (for testing)

Sub-Flow Calls and Batch Processing

run_flow() - Call another flow (or re-enter the current flow at a specific node) and return its result:

# Call an external sub-flow
- sub = run_flow(flow="detail_check.flowsy", ticket=ticket, jira=jira)

# Jump to a node in the current flow
- sub = run_flow(node="classify", email=email)

run_flow_batch() - Run a sub-flow once per list element (sequential or parallel):

- results = run_flow_batch(emails, element="email", flow="process.flowsy", mode="parallel")

Each iteration gets its own isolated context. Results are returned as a list. Supports on_error="continue" (default) or on_error="fail_fast".

search_emails() - Search an email account and return a RecordSet with readable batch methods. Existing single-email flows still receive regular Email objects; RecordSet is only used when a flow explicitly searches a batch.

context_in:
  account: EmailAccount
  consc: Consciousness

nodes:
  retrieve_emails:
    actions:
      - retrieved_emails = search_emails(account, query="customs transfer", folders=["inbox"], batch_size=10)
      - current_email_batch = retrieved_emails.get_next_batch()
    edges:
      - screen_batch

  screen_batch:
    type: stochastic
    agent: consc
    requests:
      - "Review the current email batch and return the ids of emails that mention customs transfers."
    output: candidate_email_ids
    message: screening_message
    edges:
      - len(candidate_email_ids) > 0: load_candidate_emails
      - retrieved_emails.has_next_batch(): next_email_batch
      - finalize_not_found

  next_email_batch:
    actions:
      - current_email_batch = retrieved_emails.get_next_batch()
    edges:
      - screen_batch

  load_candidate_emails:
    actions:
      - candidate_emails = retrieved_emails.load_full(candidate_email_ids)
    edges:
      - deep_review

Use domain-specific variable names in flows, such as retrieved_emails, current_email_batch and candidate_emails. Technically these are RecordSet or Record values, but the flow should read like business logic.

search_files() - Search local files and return a RecordSet with the same readable batch methods. File records start as metadata-only records; load_full(ids) loads text only for selected candidates via Agy's file parsers.

context_in:
  root_path: str
  consc: Consciousness

nodes:
  retrieve_files:
    actions:
      - retrieved_files = search_files(root_path=root_path, query="customs", file_extensions=["pdf", "docx", "md"], batch_size=10)
      - current_file_batch = retrieved_files.get_next_batch()
    edges:
      - screen_file_batch

  screen_file_batch:
    type: stochastic
    agent: consc
    requests:
      - "Review the current file batch and return the ids of files that mention customs transfers."
    output: candidate_file_ids
    message: file_screening_message
    edges:
      - len(candidate_file_ids) > 0: load_candidate_files
      - retrieved_files.has_next_batch(): next_file_batch
      - finalize_not_found

  load_candidate_files:
    actions:
      - candidate_files = retrieved_files.load_full(candidate_file_ids)
    edges:
      - deep_review

Other Notable Built-in Actions

• load_files_text() - Load and parse files (PDF, DOCX, XLSX, TXT, HTML)
• show() - Print debug information
• end() - Explicitly terminate flow with custom context values

Full reference: See docs/agy/ACTIONS_REFERENCE.md

Custom Actions

Define custom actions using ActionType and pass them to flow.run(...):

from agy import ActionType, Flow

def calculate_score(value: int, multiplier: int = 2) -> int:
    """Calculate a score by multiplying value with multiplier."""
    return value * multiplier

score_action = ActionType(
    object_name="global_function",
    method_name="calculate_score",
    kwargs={"value": int, "multiplier": int},
    callable=calculate_score
)
flow = Flow.from_flowsy("my_flow.flowsy")
result = await flow.run(action_types=[score_action], context_in={})

Full guide: See docs/agy/ACTIONS_REFERENCE.md

Flow Data and context_in

Passing Data to Flows

Flows receive input data through context_in when executed:

from agy import Flow
from objects.email import Email

# Create flow
flow = Flow.from_flowsy("email_routing_flow.flowsy")

# Create context objects
email = Email(text="...", From="user@example.com")

# Execute with context_in
result = await flow.run(context_in={"email": email})

Flow file declares required inputs:

context_in:
  email: Email
  settings: dict

flow.run(...) validates that all declared keys are provided at runtime.

The Context Dictionary

The flow maintains a context dictionary that:

• Stores all context_in objects
• Accumulates variables assigned in actions
• Holds standard result keys

Standard context keys (automatically managed):

• success (bool): Indicates if the last action succeeded
• error_msg (str): Error message if action failed
• confidence (float): Confidence value from LLM actions
• category (str): Category from classify()
• result (any): Default output variable for actions: Every function call, method call wit return value not None and without defined output variable writes to result:

actions:
  - add (0.2, 0.52)
  # result = 0.72

Variable scope:

• Variables from context_in are available everywhere
• Variables assigned in actions (e.g., answer = respond(...)) are available in:
  • Subsequent actions in the same node
  • Edge conditions in the same node
  • All nodes reached later in the flow execution

Accessing context data in actions:

actions:
  # Access context_in object
  - show(email.Subject)

  # Access object attributes
  - classify(input_text=email.text, ...)

  # Access assigned variables
  - respond(input_text=question, augmentation=search_results)

  # Access dict keys
  - value = settings["api_key"]

Return Values

After execution, flow.run() returns the final context dictionary:

context = await flow.run(context_in={"email": email})

# Access results
print(context["success"])      # True/False
print(context["category"])     # From classify()
print(context["confidence"])   # From LLM actions
print(context["error_msg"])    # Error message if any
print(context["custom_value"]) # Any value set via end(custom_value=...) or as an action "- custom_value = action_x ()"

Edges

Edges define conditional routing between nodes. They are evaluated sequentially until a match is found.

Edge Types

Conditional Edge:

edges:
  - confidence < 0.7: manual_review
  - category == "urgent": urgent_handler

Unconditional Edge (Fallback):

edges:
  - True: default_handler  # Always matches if reached

As a friendlier shorthand, the final edge may omit the condition entirely:

edges:
  - confidence < 0.7: manual_review
  - default_handler  # Same as `True: default_handler`; only valid as the last edge

No Edges (Implicit Termination):

nodes:
  final_step:
    actions:
      - email.reply("Done!")
    # No edges = flow ends here

Edge Evaluation

1. Top to Bottom: Edges are evaluated in order
2. First Match Wins: First edge with true condition is taken
3. Condition Syntax: Standard Python expressions using context variables
   • Comparisons: <, >, <=, >=, ==, !=
   • Boolean: and, or, not
   • Membership: in, not in
4. No Match: If no edge matches and no fallback exists → error

Examples:

edges:
  # Numeric comparison
  - confidence < 0.7: low_confidence

  # String equality
  - category == "urgent": urgent_handler
  - status == "approved": process_approval

  # Boolean checks
  - is_valid and not requires_review: auto_approve

  # Multiple conditions
  - confidence >= 0.8 and category == "sales": high_confidence_sales

  # Fallback (always true)
  - True: default_handler

Termination

Implicit Termination:

• Node with no edges terminates the flow
• success is True if all actions succeeded, False if any failed

Explicit Termination:

- end(success=False, error_msg="Validation failed")

Edge to end:

edges:
  - is_complete: end(success=True)  # Terminates flow
  - continue_processing

Releasing

To create a new release (bump version, tag, and publish GitHub Release with build artifacts), follow the steps in docs/dev/RELEASE_STEPS.md.
